12V DC MINI ELECTRIC HIGH PRESSURE PUMP FOR CAR WASHING

(0 reviews)

Get Price

(118) Views

(0) Contacts

Contact Company

Xiamen Starflo Industry And Trade Co., Ltd.

Fujian, China

(902) Views

(5) Contacts

How a Diaphragm Pump Works
The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber
Has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet
The volume of flow is determined by several factors including The number and size of the pump chambers, cam offset, operating pressure, fluid viscosity

                                                            Brand
                                                            STARFLO

                                                            Product Origin
                                                            Fujian,China(Mainland)

                                                            Item NO
                                                            DP-80

                                                            Model
                                                            DP-80

                                                            PUMP DESIGN
                                                            Positive Displacement 3 Chamber  Diaphragm Pump

                                                            CHECK VALVE
                                                            (1-Way Operation) Prevents Reverse

                                                            MOTOR
                                                            Permanent Magnet

                                                            VOLTAGE
                                                            12 VDC

                                                            PRESSURE SWITCH
                                                            Automatic  Shut-Off Pressure Switch

                                                            LIQUID TEMPERATURE
                                                            140°F (60°C)

                                                            Max. PRIME
                                                            6 feet (1.8 m)

                                                            PORTS
                                                            3/8" hose barb, 1/2" NPT Female

                                                            MATERIAL OF CONSTRUCTION
                                                            PLASTICS- Nylon VALVES- EPDM

                                                            Temperature limited
                                                            Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F (82°C).

                                                            NET WEIGHT
                                                            3.2kg

                                                            DIAPHRAGM
                                                            Santoprene

                                                            FASTENERS
                                                            Zinc Plated Steel

                                                            TYPICAL APPLICATIONS
                                                            Industrial Spraying, Transfer

                                                            DUTY CYCLE
                                                            Intermittent (See Temperature Rise Chart)

                                                            Colors
                                                            Black or required

Agriculture/Yacht / RV/Caravan pressurized water system
Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
Cleaning machine, Humidifier, Water purification, Medical apparatus
Any other pressurization system
Backed STARFLO’s 1-Year Warranty!

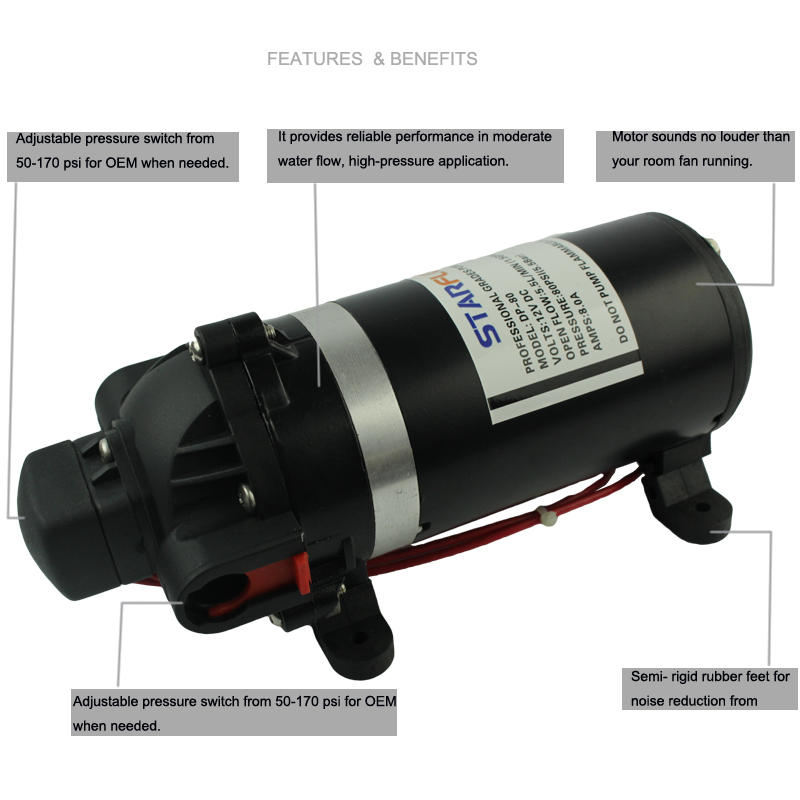

FEATURES
Long life, no leak, quiet operation
Positive displacement pump
Can run dry
Industry-standard mount pattern
Built thermal protector
Self-priming, fully automatic, easy installation
Special valve for liquid input and output
12v,24vDC and 120v,230v AC motors standard(consult factory for other voltages
Numerous fittings options for greater mounting flexibility
High-pressure diaphragm pump
Small size, Lightweight, and Stable performance
special EPDM valve for liquid input and output
Antivibration pad, easy installation with stable function
Self-priming, Automatic Pressure Switch
Automatic Pressure Protection
Low Noise, with excellent resistance to chemical corrosion
