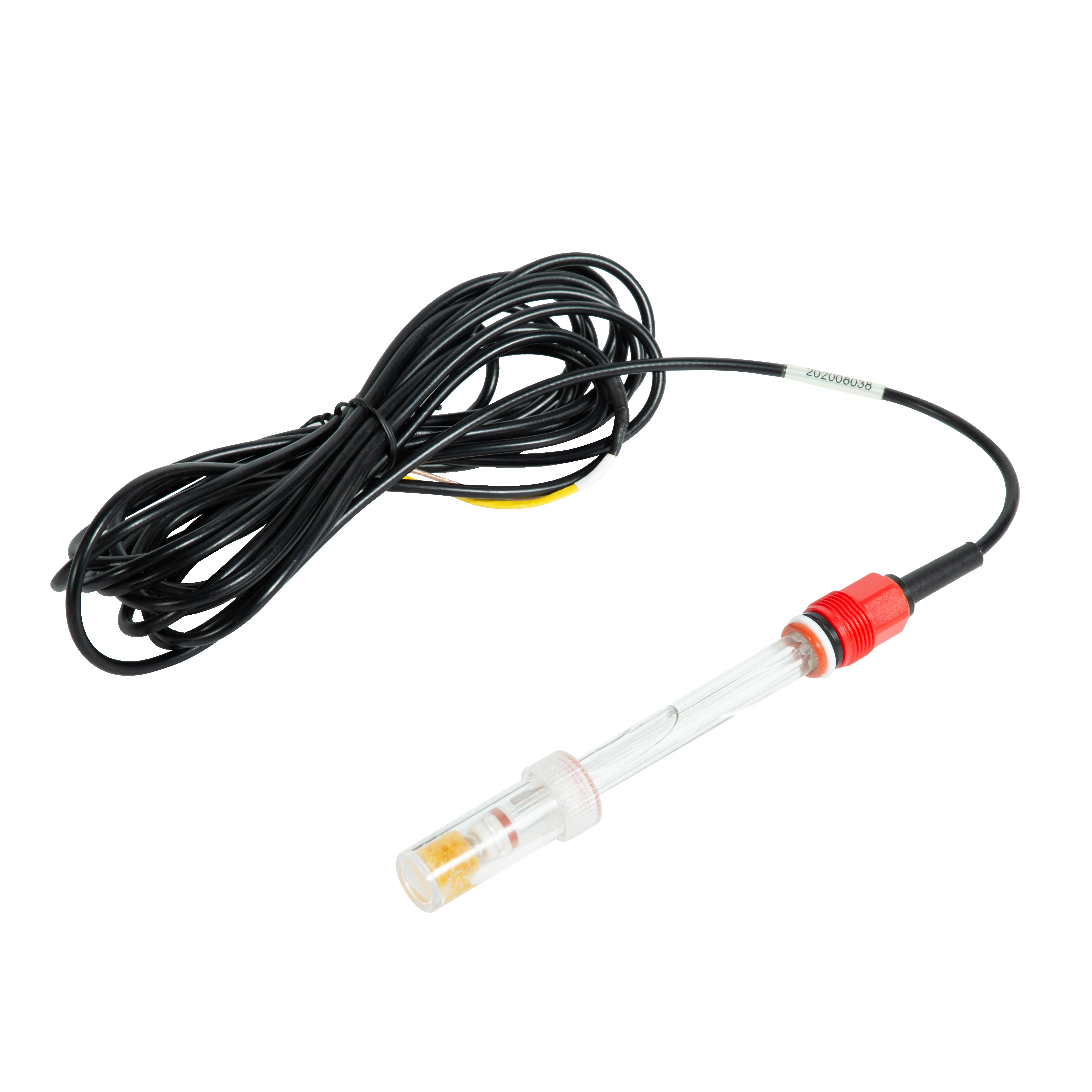

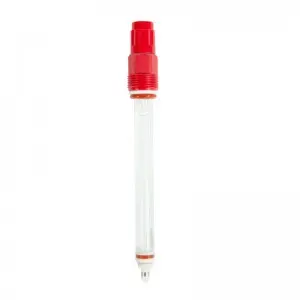

Industrial Online ORP Sensor

(0 reviews)

Get Price

(117) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(996) Views

(11) Contacts

Oxidation Reduction Potential (ORP or Redox Potential) measures an aqueous system’s capacity to either release or accept electrons from chemical reactions. When a system tends to accept electrons, it is an oxidizing system. When it tends to release electrons, it is a reducing system. A system’s reduction potential may change upon the introduction of a new species or when the concentration of an existing species changes. ORP values are used much like pH values to determine water quality. Just as pH values indicate a system’s relative state for receiving or donating hydrogen ions, ORP values characterize a system’s relative state for gaining or losing electrons. ORP values are affected by all oxidizing and reducing agents, not just acids and bases that influence pH measurement.

How is it used?
From a water treatment perspective, ORP measurements are often used to control disinfection with chlorine or chlorine dioxide in cooling towers, swimming pools, potable water supplies, and other water treatment applications. For example, studies have shown that the life span of bacteria in the water is strongly dependent on the ORP value. In wastewater, ORP measurement is used frequently to control treatment processes that employ biological treatment solutions for removing contaminants.

                                                            Model No
                                                            PH8083A&AH

                                                            Measure parameter
                                                            ORP

                                                            Temperature range
                                                            0-60℃

                                                            Features
                                                            The internal resistance is low, so there is less interference;                     The bulb part is platinum

                                                            Measuring range
                                                            ±2000mV

                                                            Temperature range
                                                            0-60℃

                                                            Compressive strength
                                                            0.4MPa

                                                            Material
                                                            Glass

                                                            Size
                                                            12*120mm

                                                            Socket
                                                            S8 and PG13.5 thread

Industrial wastewater
Drinking water
Chlorine, disinfection,
Cooling towers
Swimming pools
Water treatment
Poultry processing
Pulp bleaching, etc
It is used for oxidation-reduction potential detection in medicine, Chlor-alkali chemicals, dyes, pulp &paper-making, intermediates, chemical fertilizer, starch, environment protection, and electroplating industries.

● It adopts gel or solid electrolyte, resisting pressure and helping reduce resistance; low resistance sensitive membrane.
● Waterproof connector can be used for pure water testing.
●There is no need for additional dielectric and there is a little amount of maintenance.
● It adopts a BNC connector, which can be replaced by any electrode from abroad.
It can be used in conjunction with a 361 L stainless steel sheath or PPS sheath.
