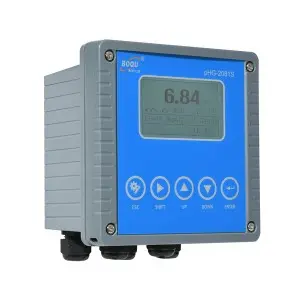

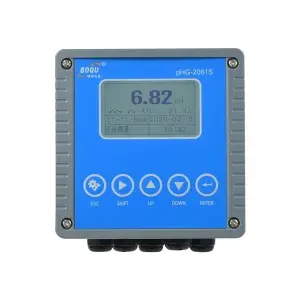

G-2081S Industrial Online pH Analyzer is a brand-new online intelligent digital instrument independently developed and manufactured by BOQU Instrument. This pH analyzer communicates with the sensor through RS485 Modbus RTU, which has the characteristics of rapid communication and accurate data. Complete functions, stable performance, easy operation, low power consumption, safety, and reliability are the outstanding advantages of this pH analyzer. The pH analyzer works with digital pH sensors, which can be widely used in industrial applications such as thermal power generation, the chemical industry, metallurgy, environmental protection, pharmaceutical, biochemical, food, and tap water.

                                                            Shell
                                                            ABS

                                                            Name
                                                            Online pH ORP Meter

                                                            Model No
                                                            PHG-2081S

                                                            Protocol
                                                            Modbus RTU RS485 or 4-20mA

                                                            Measure Parameters
                                                            pH,ORP, Temperature

                                                            Features
                                                            IP65 protection grade, 90-260VAC wide power supply

                                                            Power supply
                                                            90 – 260V AC 50/60Hz

                                                            Protection
                                                            IP65

                                                            Current output
                                                            2 roads of 4-20mA output (pH .temperature)

                                                            Relay
                                                            5A/250V AC      5A/30V DC

                                                            Accuracy
                                                            ±1%FS±0.5℃

                                                            Overall dimension
                                                            144×144×104mm

                                                            Weight
                                                            0.9kg

                                                            Communication Interface
                                                            Modbus RTU

                                                            Measure range
                                                            -2.00~16.00 pH-2000~2000mV-30.0~130.0℃

The power plant
Fermentation
Tap water
Industrial water

Technical Features
1) Extremely quick and precise pH sensor.
2) It's suitable for harsh applications and free maintenance, saving costs.
3) Provide two ways of 4-20mA output for pH and temperature.
4) Digital pH Sensors provide precision and online measurement.
5) With the data recording function, users easy to check historical data and history curves.
