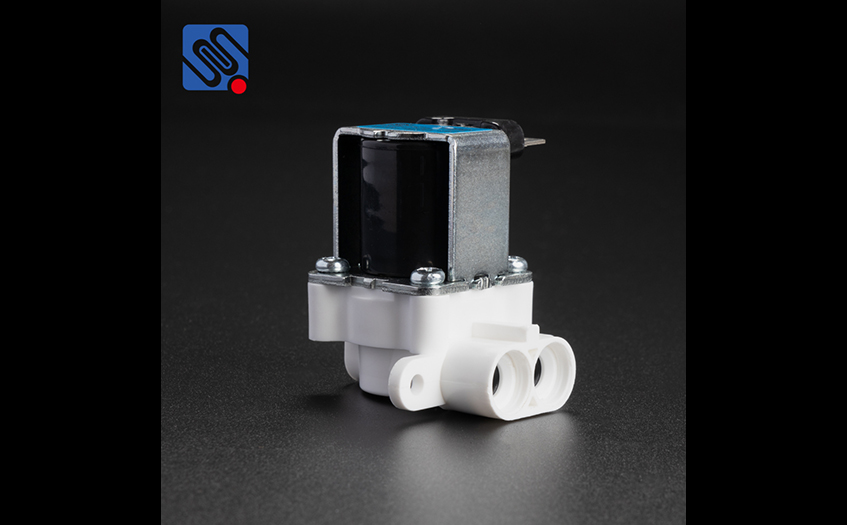

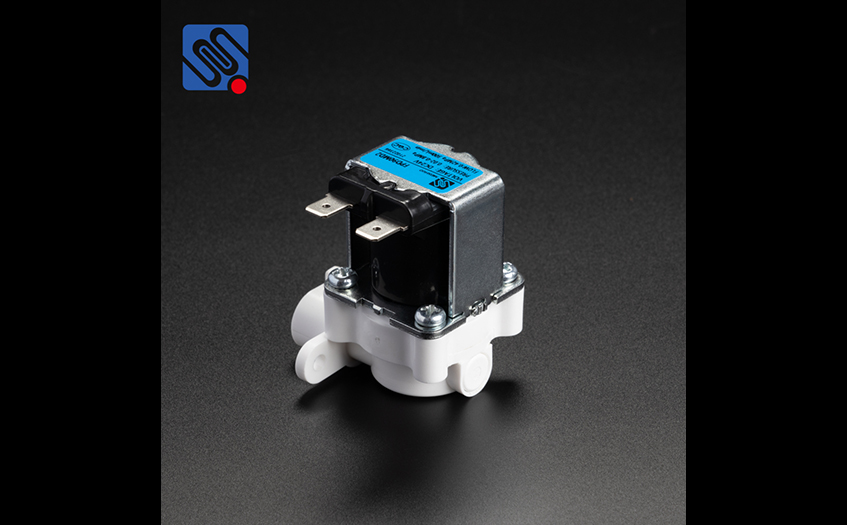

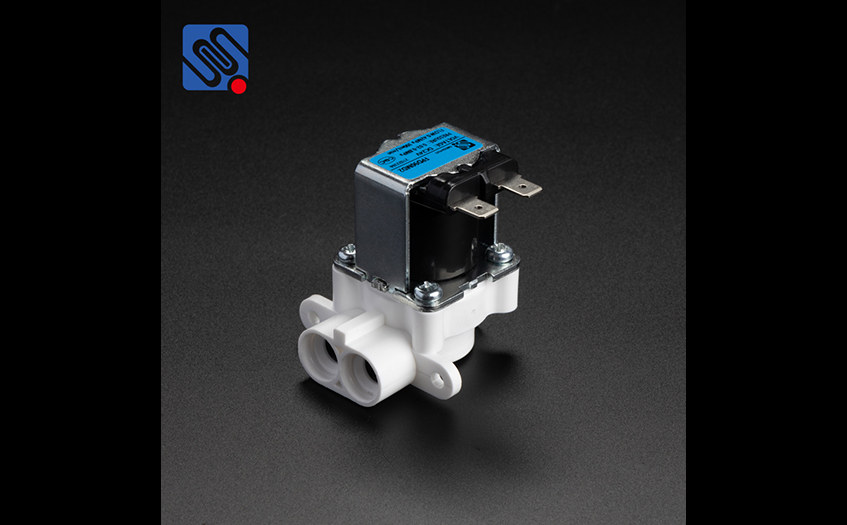

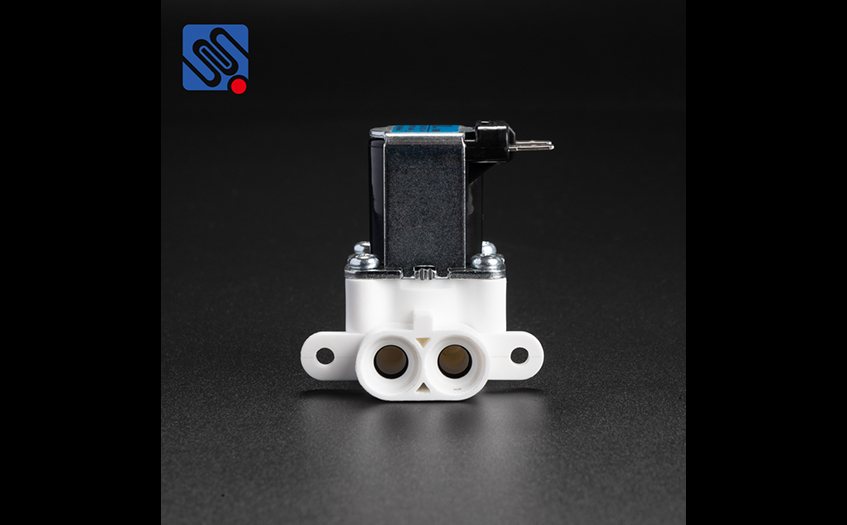

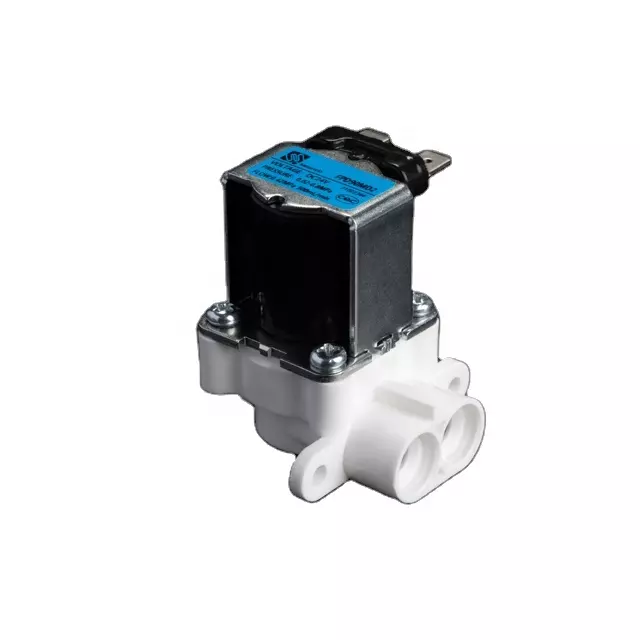

12V Combined Flushing Solenoid Valve

(0 reviews)

Get Price

(92) Views

(0) Contacts

2 - 499 pieces 500 - 999 pieces
$1.75 $1.70
1000 - 4999 pieces >= 5000 pieces
$1.65 $1.60

Contact Company

Yueqing Meishuo Import And Export Co., Ltd.

Zhejiang, China

(734) Views

(0) Contacts

The temperature of Media: Low Temperature, Medium Temperature, Normal Temperature
Power: Solenoid
Media: Water
Port Size: 7mm
Structure: Control
Pressure range: 0.02~0.8MPa
Operate Life: 100000 OPS
Working Temperature: -20C-70C
Flow Rate: >3L/ min
Waste Flow Rate: 0.42/0.5MPa 200/300/450/800/1000/1500L/min
Color: White

                                                            Rated Voltage
                                                            DC12V 24V 36V AC 110V 220V

                                                            Pressure Range
                                                            0.02-0.8Mpa

                                                            Operate Life
                                                            ≥10,0000 ops

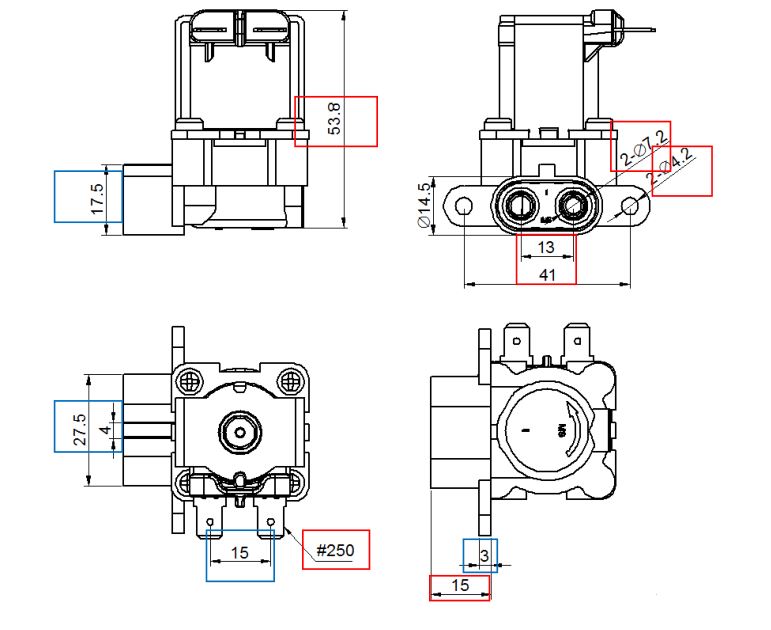

                                                            Spacing
                                                            41mm

                                                            Inlet
                                                            7mm

                                                            Outlet
                                                            7mm

                                                            Warranty
                                                            1 year

                                                            Type
                                                            Washing Machine Valves, Temperature Regulating Valves, SOLENOID VALVES

                                                            Customized support
                                                            OEM

                                                            Place of Origin
                                                            Zhejiang, China

                                                            Brand Name
                                                            Meishuo

                                                            Model Number
                                                            FPD90MD2

                                                            Certification
                                                            Reach
