Quick Fitting Combined Flushig Solenoid Valve

(0 reviews)

Get Price

(485) Views

(0) Contacts

1 - 2999 pieces 3000 - 19999 pieces >= 20000 pieces
$1.53 $1.49 $1.45

Contact Company

Yueqing Meishuo Import And Export Co., Ltd.

Zhejiang, China

(1864) Views

(3) Contacts

Electromagnetic valve is the use of electromagnetic control of industrial equipment, is used to control the fluid automation of the basic components, belongs to the actuator.

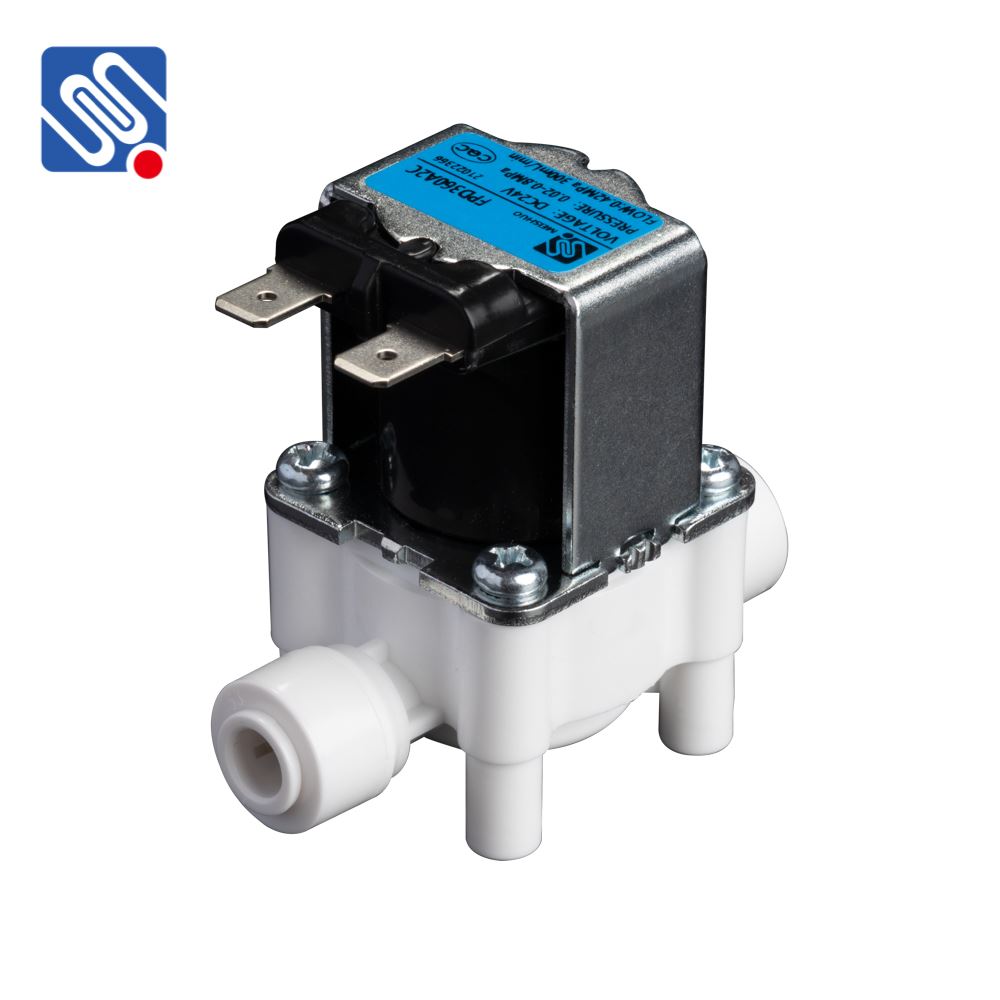

Combined Flushing Solenoid Valve is mainly used for the proportion control of purifying water and wastewater on the water purifier and backwashing RO membrane, also known as wastewater valve.
The coil is electrized to generate electromagnetic force, which pushes the iron core to move against the spring force and realizes the opening and closing of the waterway.
When the coil loses power, the iron core returns to its original position under the action of spring force.
The Flushing valve body compared with the ordinary valve body, the valve body has a wastewater hole, the flushing valve is not energized and closed, and the water inlet is under the condition of water pressure, and the water outlet will continue to seep.
The wastewater hole size is revised according to customer flow requirements.

                                                            Pressure range
                                                            0.02~0.8MPa

                                                            Operate Life
                                                            >100000 OPS

                                                            Spacing
                                                            25*25mm

                                                            Inlet and Outlet size
                                                            1/4" Quick Connect Fitting

                                                            Waste flow rate
                                                            0.42/0.5MPa  200/300/450/800/1000/1500ml/min

                                                            Name
                                                            FPD360A2C

                                                            Flow rate
                                                            >3L/min

                                                            Working Temperature
                                                            -20C-100C
