Pressure Transmitter
(0 reviews)
Get Price
(80) Views
(0) Contacts


Contact Company





Changzhou KB Instrument & Meter Co., Ltd.
Jiangsu, China
(757) Views
(0) Contacts

The compact structure and digital circuit design of the MD-G102 series universal pressure transmitter reduce the external shape, improve electrical compatibility, and make installation easier. This pressure transmitter is intended for use in water supply systems with a variable frequency water supply. It uses a unique anti-frequency conversion interference circuit to guarantee output signal stability and long-term robustness. It simultaneously considers the water supply system's temperature requirements. To ensure minimal drift and strong long-term stability, the transmitter is precisely temperature-compensated over a broad temperature range of -10 to 70 degrees Celsius. Numerous inverters, air compressors, automated production lines, and self-conveyed machinery can be used with this pressure transmitter.

Range Gauge: -100kPa…-60~0~10kPa…60MPa Absolute pressure: 0~10kPa…100kPa…2.5MPa
Overload pressure ≤10MPa 200%, ﹥10MPa 150%
Connector Material 304SS
Response time ≤5ms
Accuracy 0.5%FS
Long-term stability Typical: ±0.25%FS/year
Zero temperature drift Typical: ±0.02%FS/℃, Max: ±0.05%FS/℃
Sensitivity temperature drift Typical: ±0.02%FS/℃, Max: ±0.05%FS/℃
Supply 12~28VDC (Standard 24VDC)
Output 4-20mA / RS485 / 0~5V / 0~10V / 0.5~4.5V
Operation temperature -40~80℃
Compensation temperature -10~70℃
Storage temperature -40~100℃
Electrical protection Anti-reverse protection, anti-frequency interference design
IP rating IP65(DIN) IP67(cable)
Measurement Medium Gas or liquid incompatible with 316L stainless steel
Pressure connection M20*1.5, G1/2, G1/4, NPT1/4 (customized)

Applications of Pressure Transmitter

  1. Variable frequency water supply
  2. Machinery and equipment
  3. Automated production line
  4. Water pipe network

Pressure Transmitter characteristics
  1. Anti-frequency interference construction, especially appropriate for variable frequency pumps and inverters
  2. Good long-term stability and high accuracy.
  3. High-sensitivity diffused silicon sensors are employed as pressure-sensitive components.
  4. Horseman connector, 304 stainless steel, for example.


Product Reviews
You must Login/Register to can submit your review
Login to your account
 OR
Register new account
Similar Products.
product Featured
(0 Reviews)
Pressure Sensor – For Existing SCADA System
(1033) Views
(0) Contacts

By: Heron Instruments

Get Price
View Details
product Featured
(0 Reviews)
Differential Pressure Transmitter
(590) Views
(0) Contacts

By: Xi'an Gavin Electronic Technology Co., Ltd.

Get Price
View Details
product Featured
(0 Reviews)
Differential Pressure Transmitter
(434) Views
(0) Contacts

By: Saudi Arabian Development Company Ltd (SADC)

Get Price
View Details
product Featured
(0 Reviews)
Portable Pressure Steam Sterilizer
(427) Views
(0) Contacts

By: ENVTEK

Get Price
View Details
product Featured
(0 Reviews)
Finger Type Pressure Transmitter
(420) Views
(0) Contacts

By: Flotech Company

Get Price
View Details
product Featured
(0 Reviews)
Differential Pressure Transmitter
(415) Views
(0) Contacts

By: Flotech Company

Get Price
View Details
product Featured
(0 Reviews)
Pressure Transmitter With Display
(412) Views
(0) Contacts

By: Flotech Company

Get Price
View Details
product Featured
(0 Reviews)
Finger Differential Pressure Transmitter
(411) Views
(0) Contacts

By: Flotech Company

Get Price
View Details
product Featured
(0 Reviews)
Pressure Transmitter With Display
(386) Views
(0) Contacts

By: Flotech Company

Get Price
View Details
product Featured
(0 Reviews)
Pressure Measurement SITRANS P320/420
(305) Views
(0) Contacts

By: Siemens

Get Price
View Details
product Featured
(0 Reviews)
Pressure Transmitter
(292) Views
(0) Contacts

By: SAFIA

Get Price
View Details
product Featured
(0 Reviews)
High accuracy water pressure transmitter
(253) Views
(0) Contacts

By: Xi'an Gavin Electronic Technology Co., Ltd.

Get Price
View Details
product Featured
(0 Reviews)
Semi-Flexible Pressure Transmitter Program For Air and Water Applications
(211) Views
(0) Contacts

By: Danfoss

Get Price
View Details
product Featured
(0 Reviews)
Spanish Trend Pressure Monitor with a Pressure of 2.2 bar
(146) Views
(0) Contacts

By: AL Muhaideb National Water Solutions

Get Price
View Details
product Featured
(0 Reviews)
Pressure Measurement
(124) Views
(0) Contacts

By: Middle East for Automation System and Trading

Get Price
View Details
product Featured
(0 Reviews)
RELATIVE PRESSURE TRANSMITTER / ABSOLUTE / CERAMIC / WITH DIGITAL OUTPUT
(117) Views
(0) Contacts

By: Middle East for Automation System and Trading

Get Price
View Details
product Featured
(0 Reviews)
Stainless Pressure Transmitter
(104) Views
(0) Contacts

By: Flotech Company

Get Price
View Details
product Featured
(0 Reviews)
RELATIVE PRESSURE TRANSMITTER / SILICON / PIEZORESISTIVE / HART
(87) Views
(0) Contacts

By: Middle East for Automation System and Trading

Get Price
View Details
product Featured
(0 Reviews)
SUP-PX300 Pressure Transmitter
(82) Views
(0) Contacts

By: X Plus Trading

Get Price
View Details
product Featured
(0 Reviews)
Pressure Transmitter
(80) Views
(0) Contacts

By: Changzhou KB Instrument & Meter Co., Ltd.

Get Price
View Details
product Featured
(0 Reviews)
SUP-PX400 Pressure Transmitter
(71) Views
(0) Contacts

By: X Plus Trading

Get Price
View Details
product Featured
(0 Reviews)

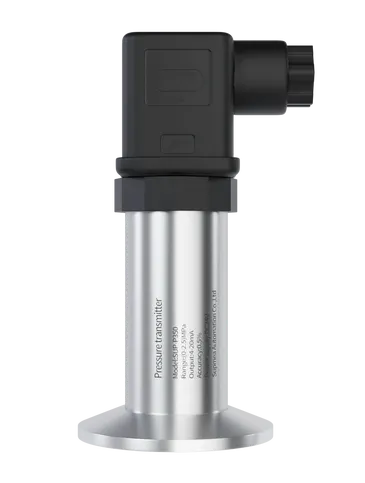

SUP-P350K Hygienic Pressure Transmitter
(70) Views
(0) Contacts

By: X Plus Trading

Get Price
View Details
product Featured
(0 Reviews)

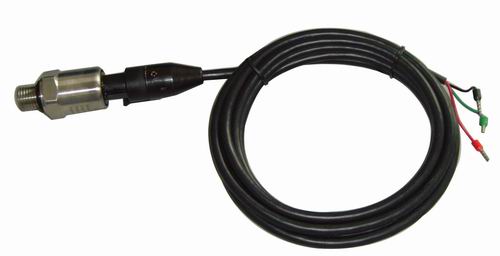

Pressure Sensor
(32) Views
(0) Contacts

By: Guangzhou Bedford Electric Equipment Co., Ltd.

35 USD
View Details
product Featured
(0 Reviews)

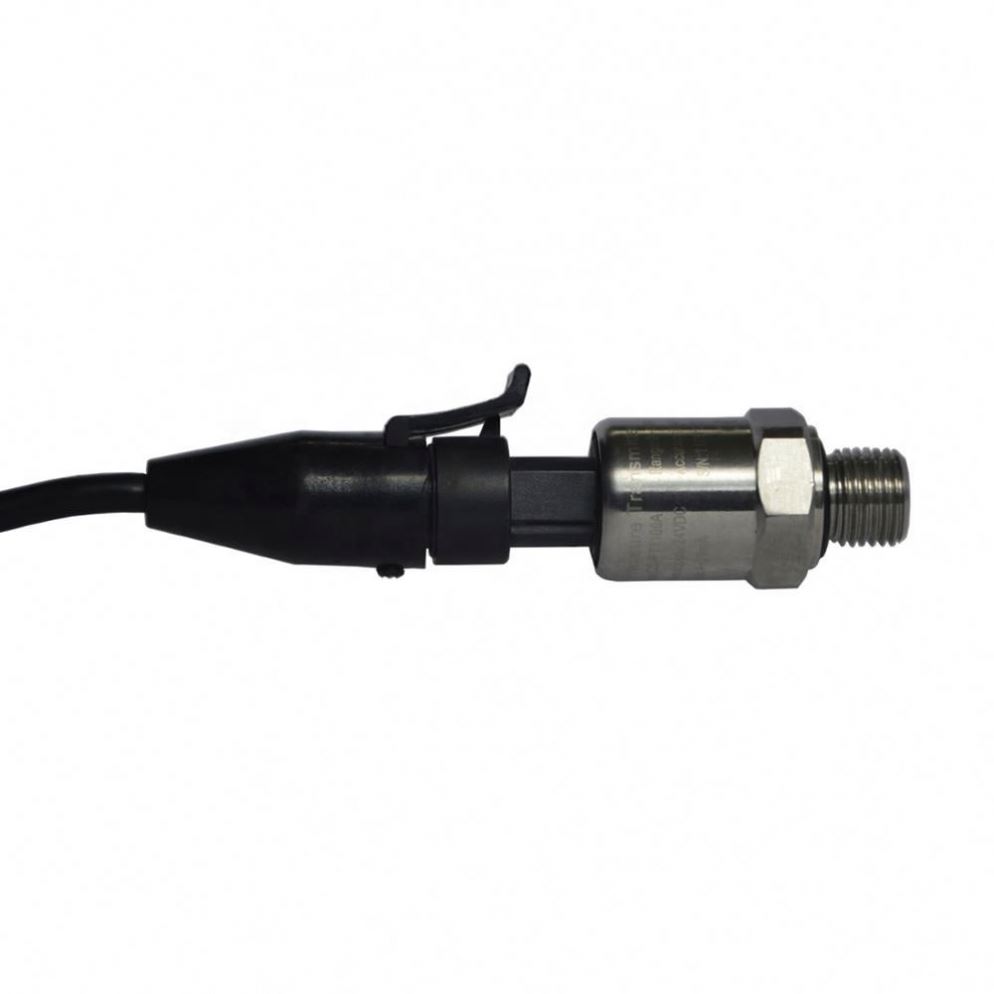

Resistance Type Water Pump Pressure Sensor
