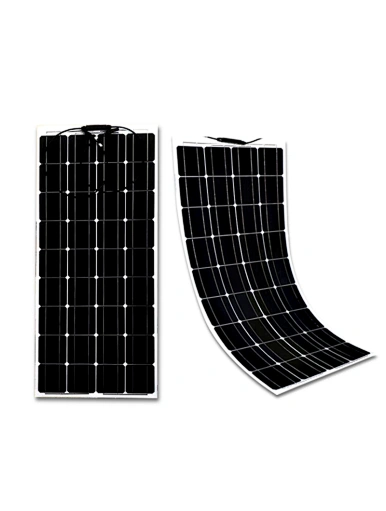

Mono Solar Panel 160W

(0 reviews)

Get Price

(193) Views

(0) Contacts

US $69.00 - US $75.00 / Piece

Contact Company

Hangzhou Zhongyi Solar Technology Co., Ltd.

Hangzhou, China

(1275) Views

(1) Contacts

A solar panel is a device made to use sunlight as a source of energy to produce heat or electricity. A photovoltaic system that produces and provides solar electricity for both residential and commercial applications is made up of photovoltaic solar panels. Most solar installations have many modules because a single module can only provide a certain amount of power. A single-crystalline solar panel A totally pure semiconductor material must be used to create monocrystalline silicon cells. Monocrystalline panels are among the most efficient solar cells and are produced in smaller quantities due to the extraction of monocrystalline rods from molten silicon and subsequent sawing into thin sheets. This process guarantees a relatively high level of effective silicon. Monocrystalline works incredibly well in cold, bright environments.

                                                            Module Type
                                                            ZY-F160W

                                                            Peak power(Pmax)
                                                            160W

                                                            MPP voltage(Vmp)
                                                            18V

                                                            MPP current(Imp)
                                                            8.9A

                                                            Open circuit voltage(Voc)
                                                            21.6V

                                                            Weight
                                                            3.5kg/CTN

                                                            Short circuit current(Isc)
                                                            9.6A

                                                            Module efficiency
                                                            15.9%

                                                            Power Tolerance
                                                            ±3%

                                                            Operating Temperature
                                                            -40°C~+85℃℃

                                                            Certification
                                                            CE/ROHS

                                                            Dimensions
                                                            1480*680*2.5mm

                                                            No. of Cells
                                                            36PCS(4*9)

                                                            Weight
                                                            2.7kg

                                                            Junction Box
                                                            IP65

                                                            Output Cables
                                                            2.5m㎡*900mm

                                                            Connectors
                                                            MC4 compatible

                                                            Box Size
                                                            149*69*3cm

                                                            Packing Type
                                                            1PCS/CTN
