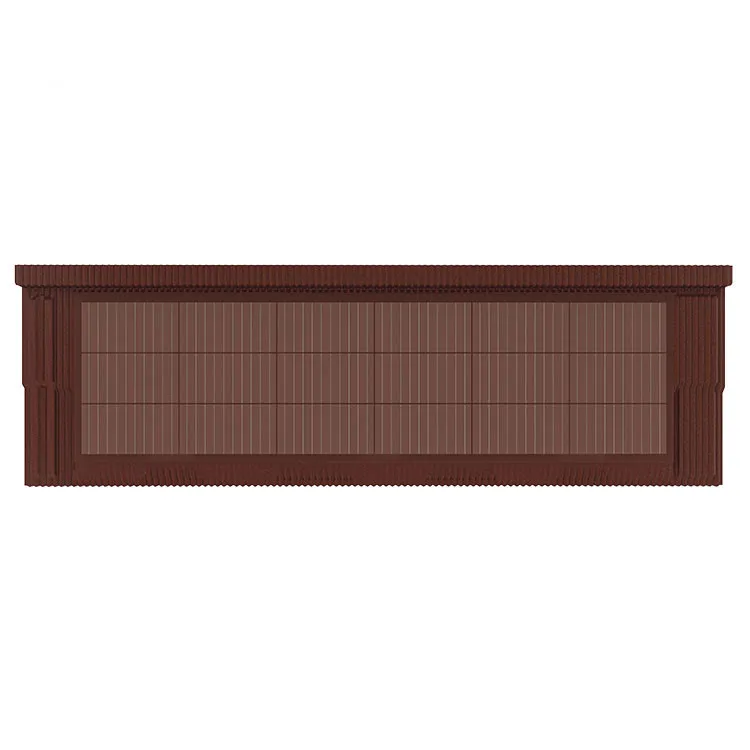

Red Solar Aesthetic Tiles Solar Tile

(0 reviews)

(100) Views

(0) Contacts

It was treated with specific dyes or pigments to make it seem red. This color treatment is an aesthetic factor, particularly in architectural or design work. Red solar roof tiles offer a wider range of appearance options to fulfill specific design requirements.

Contact Company

Zhejiang San-Gobuild Jiasheng New Co., Ltd.

Zhejiang, China

(174) Views

(0) Contacts

Product Details
Product Reviews

                                                            Model
                                                            JS75DG-13e 1/2

                                                            Dimensions
                                                            1260*480mm

                                                            Weight
                                                            15.5kg

                                                            Glass (material/thickness)
                                                            Tempered glass/3.2mm+3.2mm

                                                            Cell
                                                            182*91mm（2*12）

                                                            Short-circuit current（Isc）
                                                            5.93A

                                                            Junction box
                                                            ≥IP67

                                                            Plug connector
                                                            MC4

                                                            Cable type
                                                            900mm / 4mm²

                                                            Life span
                                                            >30years

                                                            Open-circuit current（Voc）
                                                            16.1V

                                                            Solar cells
                                                            Monocrystalline

                                                            Power output（Pmax ）
                                                            75W

                                                            Current at Pmax（I mpp）
                                                            5.59A

                                                            Module efficiency（%）
                                                            14.5%

                                                            Voltage at Pmax（V mpp）
                                                            13.4V
