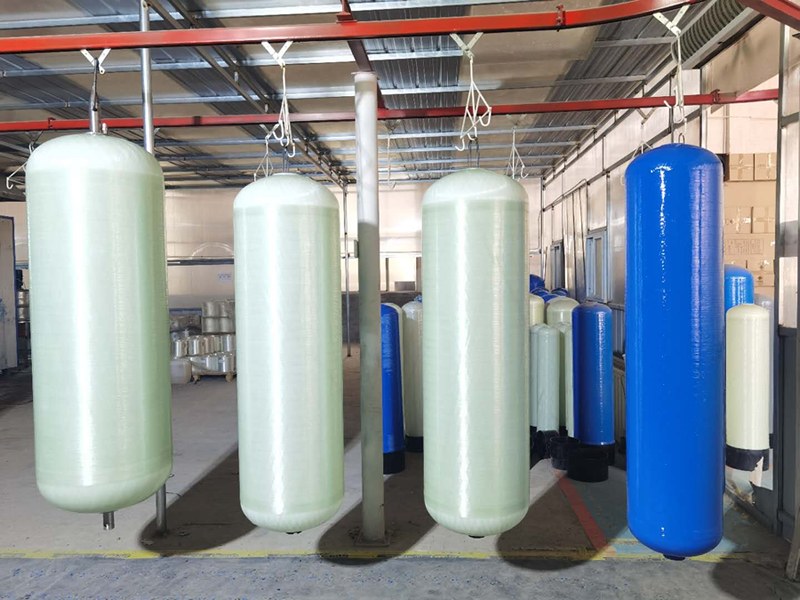

Arclion FRP Water Softener Tanks

(0 reviews)

Get Price

(376) Views

(0) Contacts

Arclion tanks with upper filling port/lower discharge port available.

Contact Company

Hebei ChengDa Water Technology Co., Ltd.

Hebei, China

(825) Views

(20) Contacts

Specifications

Item	Size		Dimensions	CBM
Item	*Dia.Height**	Model	m	CBM
1	150*254	610-2.5"	0.1660.1660.259	0.007137004
2	150*320	613-2.5"	0.1660.1660.335	0.00923126
3	150*432	617-2.5"	0.1660.1660.437	0.012041972
4	150*457	618-2.5"	0.1660.1660.462	0.012730872
5	150*736	629-2.5"	0.1660.1660.741	0.020418996
6	150*889	635-2.5"	0.1660.1660.894	0.024635064
7	180*320	713-2.5"	0.1880.1880.335	0.01184024
8	180*422	717-2.5"	0.1880.1880.437	0.015445328
9	180*610	724-2.5"	0.1880.1880.625	0.02209
10	180*762	730-2.5"	0.1880.1880.777	0.027462288
11	180*879	735-2.5"	0.1880.1880.894	0.031597536
12	180*1108	744-2.5"	0.1880.1881.124	0.039726656
13	200*330	813-2.5"	0.3380.2150.215	0.0156
14	200*432	817-2.5"	0.4370.2150.215	0.0202
15	200*610	824-2.5"	0.6250.2150.215	0.0289
16	200*890	835-2.5"	0.8950.2150.215	0.0414
17	200*1120	844-2.5"	1.1250.2150.215	0.0520
18	230*432	917-2.5"	0.4550.240.24	0.0262
19	230*890	935-2.5"	0.90.240.24	0.0518
20	230*1068	942-2.5"	1.0730.240.24	0.0618
21	230*1220	948-2.5"	1.2250.240.24	0.0706
22	250*432	1017-2.5"	0.4290.2660.266	0.0304
23	250*484	1019-2.5"	0.4940.2660.266	0.0350
24	250*610	1024-2.5"	0.6220.2660.266	0.0440
25	250*890	1035-2.5"	0.8860.2660.266	0.0627
26	250*1119	1044-2.5"	1.1350.2660.266	0.0803
27	250*1373	1054-2.5"	1.380.2660.266	0.0976
28	300*1220	1248-2.5"	1.2330.3180.318	0.1247
29	300*1333	1252-2.5"	1.3330.3180.318	0.1348
30	300*1652	1265-2.5"	1.6630.3180.318	0.1682
31	330*1117	1344-2.5"	1.10.3430.343	0.1294
32	330*1372	1354-2.5"	1.380.3430.343	0.1624
33	350*1336	1452-2.5"	1.3360.3690.369	0.1819
34	350*1336	1452-4"	1.3360.3690.369	0.1819
35	350*1661	1465-2.5"	1.6610.3690.369	0.2262
36	350*1661	1465-4"	1.6610.3690.369	0.2262
37	350*1850	1465-4"-4"	1.850.580.59	0.6331
38	400*1325	1652-2.5"	1.3250.4280.428	0.2427
39	400*1325	1652-4"	1.3250.4280.428	0.2427
40	400*1668	1665-2.5"	1.6680.4280.428	0.3056
41	400*1668	1665-4"	1.6680.4280.428	0.3056
42	400*1877	1665-4"-4"	1.8770.4180.418	0.3280
43	450*920	1836-4"	0.920.4650.465	0.1989
44	450*1350	1853-4"	1.350.4650.465	0.2919
45	450*1655	1865-4"	1.6550.4650.465	0.3579
46	450*1873	1865-4"-4"	1.8730.4650.45	0.3919
47	500*1770	2069-4"	1.770.5120.512	0.4640
48	500*1955	2069-4"-4"	1.9550.5120.512	0.5125
49	550*940	2136-4"	0.940.5430.543	0.2772
50	550*1370	2153-4"	1.370.5430.543	0.4039
51	550*1600	2162-4"	1.60.5430.543	0.4718
52	550*1804	2162-4"-4"	1.8040.5430.543	0.5319
53	600*1920	2465-4"-4"	1.920.6140.6134	0.7231
54	600*2080	2472-4"-4"	2.080.6140.614	0.7842
55	750*1855	3065-4"-4"	1.8550.7650.765	1.0856
56	750*2035	3072-4"-4"	2.0350.7650.765	1.1909
57	750*2240	3072-6"-6"	2.240.7650.765	1.3109
58	900*1900	3665-4"-4"	1.910.9090.909	1.5782
59	900*2060	3672-4"-4"	2.090.9090.909	1.7269
60	900*2160	3672-6"-6"	2.160.9090.909	1.7848
61	1000*1940	4065-4"-4"	1.9511	1.9500
62	1000*1981	4065-6"-6"	2.0411	2.0400
63	1000*2160	4079-4"-4"	2.2911	2.2900
64	1000*2331	4079-6"-6"	2.3611	2.3600
65	1100*2180	4272-6"-6"	2.181.071.07	2.4959
66	1200*2195	4872-6"-6"	2.1951.2171.217	3.2510
67	1500*2425	6079-6"-6"	2.251.51.5	5.0625
68	1600*2050	6367-6"-6"	2.11.6091.609	5.4367
69	1600*2460	6386-6"-6"	2.61.6091.609	6.7311
70	1800*2650	7279-6"-6"	2.651.81.8	8.5860
71	2000*2600	8079-6"-6"	2.602.0362.036	10.7778

                                                            Design pressure
                                                            100 PSI, 150 PSI

                                                            Fatigue test
                                                            100000 times.

                                                            Burst test
                                                            4 times of its design pressure.

                                                            Working temperature
                                                            1 °C to 49 °C (34°F to 120°F).

                                                            Model
                                                            610-8079.

                                                            OEM FRP tanks
                                                            available

                                                            Food grade
                                                            HDPE inner liner.

                                                            Warranty
                                                            two years.

                                                            Accessories
                                                            tank media fillers, water distributors, and multiport valves for filters and softeners.

                                                            Special tanks
                                                            Arclion 1054 with upper loading port / bottom opening Arclion Tanks with upper filling port lower discharge port Arclion special-shaped FRP tanks

Water softening equipment in food processing plants
Hospitals
Laundries,
Manufacturing plants
Office campuses
Restaurants, condominiums
Coiler feedwater
Car washes
Institutions
Municipal
Multimedia filters
Carbon filters
Iron filters
Calcite filters
Specialty media filters.

Each opening surface is flat and smooth, with no blisters and air bubbles, so as to ensure no leakage after installing the valve.
The unique ID code for each tank.
Dust protection cap for each opening.
