Multi cartridges self-cleaning filter
Multi cartridges self-cleaning filter is a kind of industrial automatic filter that can provide a variety of comprehensive uses to ensure the purity and reliability of the filtered liquid. It is a standard water filter for most water filtration applications, in terms of processing capacity, accuracy, and reliability. It can continue to maintain a good operating posture even under harsh operating conditions.
Filter medium
Suspended solids, particulate matter, water quality dirt, bacteria and algae, corrosion, etc
Equipment performance
Automatic control system:
The intelligent control system is sensitive, accurate, simple, and easy to operate.
High-performance precision filter element:
V-shaped slit precision filter element: V-shaped opening has a good backwashing effect and is not easy to jam impurities.
Advantages of overall structure:
the overall equipment structure has no consumables, less vulnerable parts, and low operation cost

                                                            Shell
                                                            Q235, 304 stainless steel

                                                            Filter screen
                                                            304 stainless steel, 316L stainless steel

                                                            Minimum backwashing water pressure
                                                            0.2 MPa

                                                            Blowdown valve
                                                            cast iron, stainless steel

                                                            Purpose
                                                            removing impurities in water

                                                            Sealing ring
                                                            EPDM rubber

                                                            System backwashing interval
                                                            0-10h (adjustable according to water quality)

                                                            System backwashing sequence
                                                            backwashing unit by unit

Application
Power industry, reverse osmosis pre-stage, petrochemical, chemical, food and beverage, automotive, industrial, metallurgy, papermaking, pharmaceutical, microelectronics, environmental protection water treatment, and other industries.

Equipment advantages

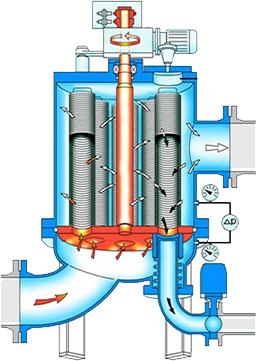

First of all, the water passes through the coarse filter at the inlet to remove the larger impurities and then passes through the fine filter to remove the smaller impurities.
In the filtration process, the fine filter gradually accumulates dirt and impurities, forming an impurity layer that is piled up on the inner side of the fine filter screen, then a differential pressure is formed on the inside and outside sides of the fine screen.
When the pressure difference of the filter reaches the preset value, the automatic self-cleaning process will begin, the water supply is not cut off during this self-cleaning process; the sewage discharge valve is opened, the water pressure in the cleaning chamber and the sewage suction pipe greatly decreases, and there will be a pressure difference between the filter element and the sewage suction pipe, the suction pipe and the cleaning chamber will produce a suction process through the suction nozzle, forming a sewage suction process.
At the same time, the electric motor drives the suction pipe along the axial spiral movement.
The combination of axial movement and rotary movement of the suction pipe will completely clean the inner surface of the filter screen.
The whole process takes only a few seconds.
The drain valve closes at the end of cleaning.
The filter begins to prepare for the next flush cycle.
