PV Aluminum Frame (HOL.PAN)

(0 reviews)

Get Price

(134) Views

(0) Contacts

Contact Company

Holcom Vietnam

Ha Noi, Vietnam

(646) Views

(0) Contacts

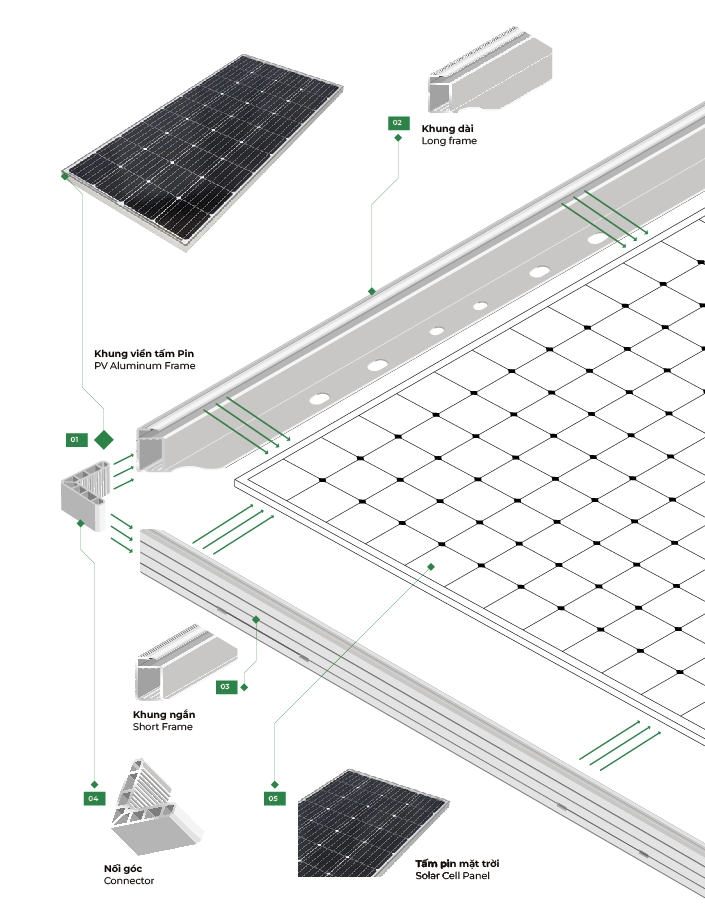

Holcom produces the HOL.PAN aluminum frame system to shield solar cell panels. Different surface finishes reinforce the functions and visual impacts while also guaranteeing the intensity of the frame system. Installation is simple and convenient because of the unique interface. Several frame standards can accommodate various customer integrations.

                                                            Product code
                                                            HOL.PAN

                                                            Brand
                                                            HOLCOM

                                                            Port of export
                                                            HaiPhong, Vietnam

                                                            Installation area
                                                            Edge around the battery panel

                                                            Materials
                                                            AL6005-T5 / AL6005-T6/ SUS304

                                                            Standard
                                                            JIS C8955:2017 / ISO 9001:2015 / TCVN 6781-1-1:2017 / SGS​

                                                            Surface treatment
                                                            Silver anode with thickness from 6μm to 18μm. Hot-dip galvanized layer (if any) has a thickness of ≥ 65μm

                                                            Application
                                                            Installing borders around solar panels

                                                            Length tolerance
                                                            +/- 0.5mm

                                                            Color
                                                            Silver Anodized, 8μm - 20 μm

                                                            Warranty
                                                            15 years

                                                            Lifespan
                                                            25 years

                                                            Various sizes
                                                            1650x992 mm/1635x990 mm, 580x808 mm/1250x545 mm, 824x545mm/620x286mm
