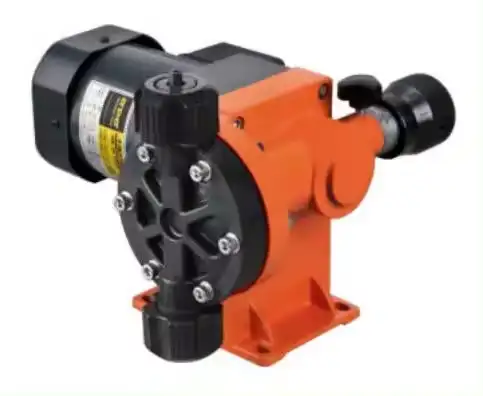

Diaphragm Metering Pump

(0 reviews)

Get Price

(154) Views

(0) Contacts

Contact Company

Blue-White Industries

California, USA

(775) Views

(0) Contacts

Fitting for discharge injection with check valve.
Options "A" include ½"House Barb Inlet," ½" M/NPT Outlet," and ½"M/NPT Injection." It fits.

½" M/NPT injector.
½" strainer/bar foot valve for hoses.
Suction tubing, ½".
clamp #5.

Option "B" includes a ½" M/NPT injection fitting, a ½" F/NPT outlet, and a ½" Hose Barb inlet.

½" M/NPT injector.
½" strainer/bar foot valve for hoses.
Suction tubing, ½".
clamp #5.

½" Hose Barb Inlet and Outlet with ½" ID Hose Barb Injection Fitting is option "C."

Barb injector for a ½" hose.
½" strainer/bar foot valve for hoses.
Suction tubing, ½".
clamp #5.

Option "D": Compression Inlet, Outlet, and Injection Fitting for 3/8" OD Tube.

Ten-foot clear PVC suction tube (3/8 OD, 1/4 ID).
strainer/suction foot valve.
weight of a suction ceramic.
The discharge tube is 10 feet long and made of opaque polyethylene (3/8 OD, 1/4 ID).

½" M/NPT Inlet and Outlet with ½" M/NPT Injection Fitting is option "E."

M/NPT injector, ½".
½" strainer/foot valve for M/NPT.

Option "F": ½" M/NPT Injection Fitting with ½" F/NPT Inlet and Outlet.

M/NPT injector, ½".
½" strainer/foot valve for M/NPT.
hardware set for mounting.
connections for junction boxes.

                                                            GPH
                                                            .02 - 16.5

                                                            LPH
                                                            .09 - 62.5

                                                            Pressure
                                                            175 PSI (12 Bar)

                                                            mL/min
                                                            1.5 - 1042

                                                            Standards
                                                            CE, cETLus, RoHS

                                                            Power Supply
                                                            100 to 240VAC-50/60Hz

                                                            Control Methods
                                                            Manual, Remote Analog/Digital

                                                            Maximum Working Pressure
                                                            175 psig (12 bar)

                                                            Maximum Fluid Temperature
                                                            130 °F (54 °C)

                                                            Maximum Ambient Temperature
                                                            14 °F to 110 °F (-10 °C to 46 °C )

                                                            Maximum Viscosity
                                                            1,000 Centipoise

                                                            Maximum Suction Lift
                                                            15 ft. Water, 0 psig (4.5 m, 0 bar)

                                                            Operating Voltage
                                                            115VAC/60Hz, 1ph (1.5 Amp Maximum) 230VAC/60Hz, 1ph (0.7 Amp Maximum) 220VAC/50Hz, 1ph (1.0 Amp Maximum) 240VAC/50Hz, 1ph (1.0 Amp Maximum) 230VAC/50Hz, 1ph (1.0 Amp Maximum)

                                                            Power Cord Options
                                                            115V60Hz = NEMA 5/15 (USA) 230V60Hz = NEMA 6/15 (USA) 220V50Hz = CEE 7/VII (EU) 240V50Hz = AS 3112 (Australia/New Zealand) 230V50Hz = BS 1363/A (UK)

                                                            Duty Cycle
                                                            Continuous

                                                            RoHS Compliant
                                                            Yes

                                                            Motor Speed Adjustment Resolution
                                                            100:1, (1.0% – 100% motor speed) Max. rpm = 166

                                                            Display
                                                            Backlit LCD, UV resistant

                                                            Keypad
                                                            Positive action tactile switch keypad

                                                            Product Weight
                                                            24 lb. (10.9 Kg)

                                                            Enclosure
                                                            NEMA 4X (IP66), Polyester powder coated aluminum.

Characteristics of Diaphragm Metering Pump
Advantages:

The DiaFlex® diaphragm design prolongs the pump's life and removes the need for costly repair kits, protected by a patent.
Leak detection is commonplace with Diaphragm Failure Detection (DFD).
Precise chemical metering up to 175 PSI in pressure.

Interaction & Interface:

Digital controls that are easy for operators to use and have backlit LCD displays for motor speed, input signal values, service, and alert status.
Pulse inputs, 4–20 mA, and remote start/stop are examples of signal inputs.
Among the signal outputs are an open collector and a relay (3 amps).
Compatible with the Flow Verification Sensor (FVS) system from Blue-White.
The alarm relay keeps an eye on the FVS and DFD systems.
Ready for SCADA When the motor is turned on, the 5-30V DC open collector output loop shuts off.

Excellent Design:

Two-Year Guarantee.
Turndown ratio: 100:1.
NEMA 4X (IP66) powder-coated enclosure that is chemically resistant and washable.
Double-ball, ceramic, and PVDF check valves that are large and do not have metal springs.

Characteristics of Safety:

By identifying a chemical in the pump head, Diaphragm Failure Detection (DFD) detects diaphragm rupture. False triggering is prohibited by patent.
UV display cover shields controls from abrasive conditions.
Included is the C2 Diaphragm Metering Pump.
