Meter Verification: What Is It?
By comparing your flow meter's performance with another instrument with a known performance that has been temporarily inserted into the system, meter verification gives you peace of mind about the meter's operation.
Why check?
There are numerous real-world explanations why a meter cannot be calibrated. It's possible that the piping configuration prevents the temporary connection of a reference device, like a prover or master meter, or that the procedure cannot be stopped in order to remove the meter. Sometimes the flow rate or meter size may be too much for the stationary or mobile calibration facilities that are available.
Verification is a significantly better option than doing nothing if calibration is not possible.
Even though the reference device lacks a traceable calibration certificate, you may be sure that your meter is operating correctly if you carefully choose and install the right technology.
Our capacity to verify

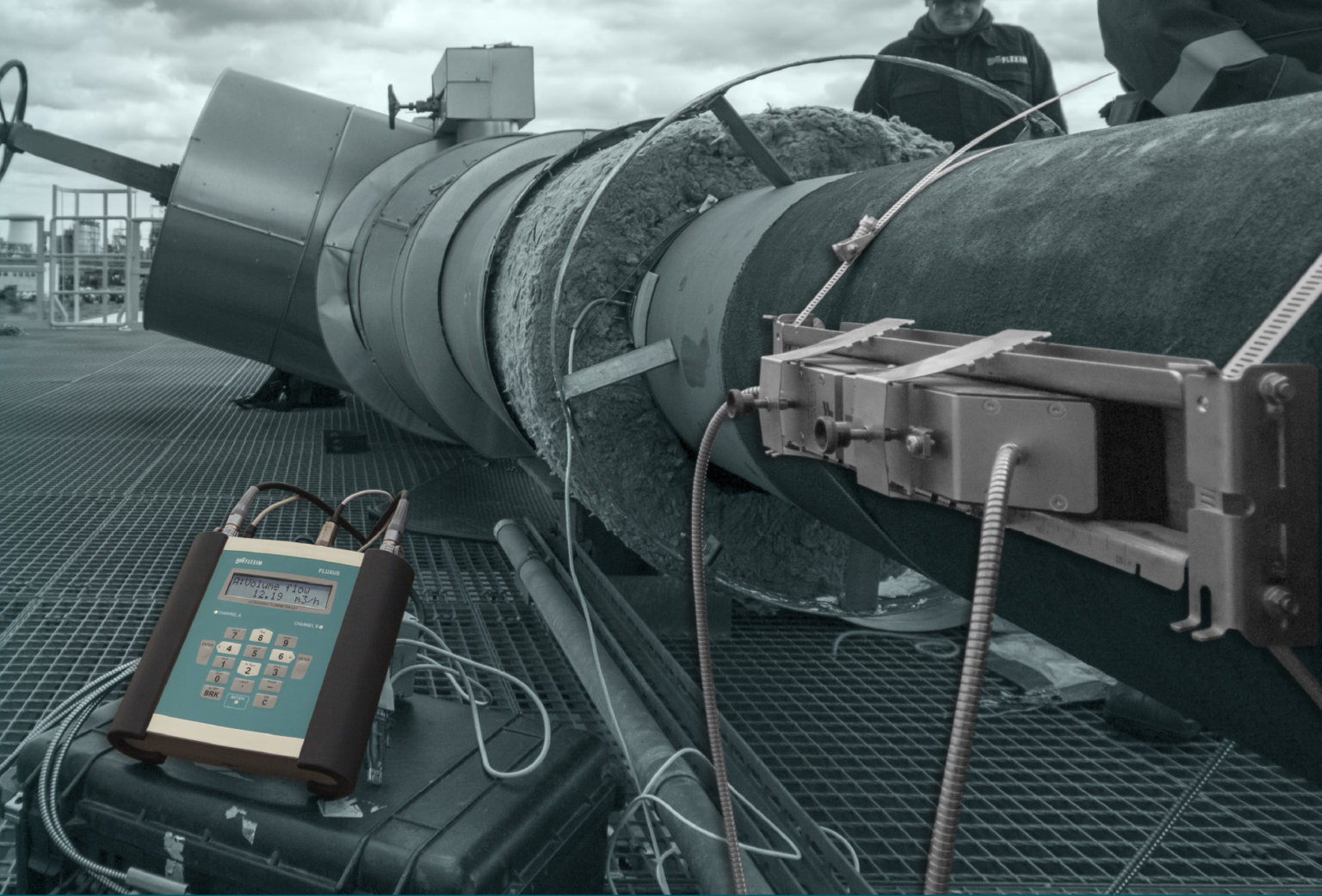

ACC makes use of clamp-on ultrasonic flow meters made by one of the top innovators in this field. The clamp-on meter is a safe and easy way to install gas and liquid applications in both safe and hazardous regions. It doesn't require changing the existing pipe work or interfering with operation. Throughout the verification procedure, nothing interrupts your process.

Important parameters for operations consist of:

Pipe diameters ranging from 6 to 6500 mm.
For gas application, pipe wall thickness can reach up to 35 mm.
±1.0% accuracy is achieved when 10D upstream and 5D downstream straight lengths are used for installation.
25 m/s is the maximum fluid velocity.
240 °C is the maximum operational temperature.
With specific fittings, higher temperatures are feasible.
Every kind of gas and liquid.
