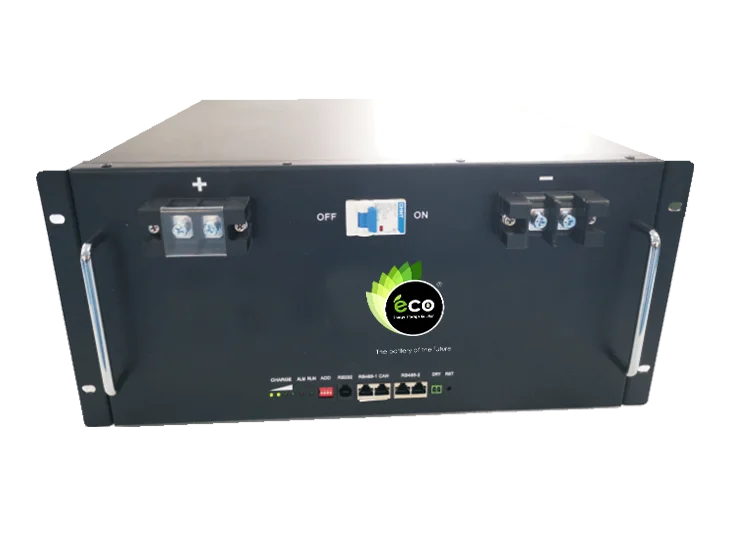

Lithium Iron Phosphate ECO ESS Battery LFP48-250(48V250AH)

(0 reviews)

Get Price

(72) Views

(0) Contacts

Contact Company

ECO ESS Ltd

Mountsorrel, United Kingdom

(167) Views

(0) Contacts

                                                            Model
                                                            LFP48-250(48V250AH)

                                                            BMS
                                                            15S100A

                                                            Nominal Voltage
                                                            48V

                                                            Nominal Capacity
                                                            250Ah (C5,25℃)

                                                            Energy
                                                            12000Wh

                                                            Protocol (optional)
                                                            RS485/CAN

                                                            Internal Resistance
                                                            ≤500mΩ

                                                            Terminal
                                                            100A through terminal

                                                            Cycle Life
                                                            >5000 cycles @0.2C 800%DOD

                                                            Weight (lbs./kg.)
                                                            92Kg (Approx.)

                                                            Months Self Discharge
                                                            <3%

                                                            Dimensions (in./mm.)
                                                            482*570*270 mm

                                                            Efficiency of Charge
                                                            100% @0.2C

                                                            Efficiency of Discharge
                                                            96~99% @1C

                                                            Charge voltage
                                                            54.8±0.2V

                                                            Charge Mode
                                                            0.2C to 54.8V, then 54.8,charge current 0.02C(CC/CV)

                                                            Charger Current
                                                            50A

                                                            Max Charge current
                                                            125A

                                                            Cell & Method
                                                            10213245-3.2V50AH-15S5P

                                                            Plastic Case
                                                            6U standard case

                                                            Storage Temperature
                                                            0 ℃ to 40 ℃ (32F to 104F) @60?25% Relative Humidity

                                                            Charge Cut-off Voltage
                                                            55.5V±0.2V

                                                            Discharge Temperature
                                                            -20 ℃ to 60 ℃ (-4F to 140F) @60?25% Relative Humidity

                                                            Charge Temperature
                                                            0 ℃ to 45 ℃ (32F to 113F) @60?25% Relative Humidity

                                                            Continuous Current
                                                            100A

                                                            Discharge cut-off Voltage
                                                            37.5V

                                                            Max. Pulse Current
                                                            500A(<3s)

Applications of Lithium Iron Phosphate ECO ESS Battery

Electric vehicles, electric mobility
Solar/wind energy storage system
UPS, backup power
Telecommunication
Medical equipment
Lighting

Lithium Iron Phosphate ECO ESS Battery LFP48-250

(48V250AH) Characteristics

Longer Cycle Life: Provides up to 20 times longer cycle life and five times longer float/calendar life than lead-acid batteries, reducing replacement costs and total cost of ownership.
It is approximately 40% lighter than a comparable lead-acid battery. A 'drop-in' substitute for lead acid batteries.
Higher Power: Delivers double the power of a lead-acid battery and allows for higher discharge while keeping high energy capacity.
Temperature range: -20°C to 60°C.
Superior safety: lithium iron. Phosphate chemistry eliminates the possibility of explosion or combustion as a result of high impact, overcharging, or short circuit conditions.
Increased Flexibility: The modular architecture allows for the deployment of up to four batteries in series and ten batteries in parallel.
