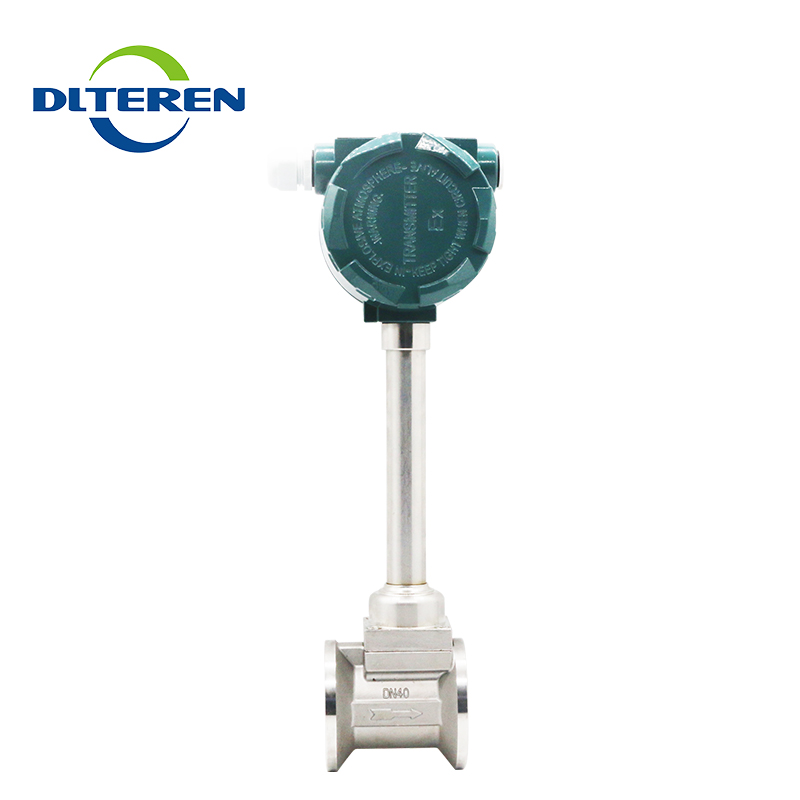

Better Design Temperature and Pressure Compensation Vortex Mass Flow Meter

(0 reviews)

Get Price

(206) Views

(0) Contacts

Contact Company

Dalian Teren Instruments Co.,Ltd.

Liaoning, China

(1594) Views

(2) Contacts

Output
Signal Output
Pluse and 4-20mA
Communication output
RS-485 and Hart
Power supply
External
+24VDC, suitable for 4-20mA, pluse and RS485 etc.
Built-in
S type
3.6V 9Ah lithium battery
Interface
M20×1.5
Explosion-Proof
ExiaIICT5
Protection
IP65 or (customize)
pplication Range
1 Gas; 2. Liquid; 3. Steam
Primary Measured Value
Flow Rate
Secondary Measured Value
Volume Flow (Pressure and Temperature are available)
Process Temperature
T1 Level: -20...100 deg cel
T2 Level: -20...250 deg cel
T3 Level: -20...350 deg cel
Pressure
EN 1092-1
DN200...DN300: PN10
DN100...DN200: PN16
DN15...DN80: PN25
Other pressure is on request
ASME B16.5
1/2"...8": 150#
Other pressure is on request
JIS
1/2"...8": 10K
Other pressure is on request
Accuracy
For liquid: 1.0% of rate
For gas/ steam: 1.5% of rate
Body Material
SS304
SS316
Converter material
Standard: Polyurethane coted die-cast aluminium

                                                            Accuracy
                                                            ± 1.5% of Rate / ±1.0% of Rate

                                                            Diameter range
                                                            DN20-DN300

                                                            Fluid Temp.
                                                            - 20...+350°C

                                                            Housing Material
                                                            SS304 / SS316

                                                            Application Range
                                                            Gas; liquid; steam

                                                            Connection
                                                            wafer/Flange

Product Reviews

You must Login/Register to can submit your review

Output	Signal Output	Pluse and 4-20mA
	Communication output	RS-485 and Hart
Power supply	External	+24VDC, suitable for 4-20mA, pluse and RS485 etc.
	Built-in	S type	3.6V 9Ah lithium battery
Interface	M20×1.5
Explosion-Proof	ExiaIICT5
Protection	IP65 or (customize)

pplication Range	1 Gas; 2. Liquid; 3. Steam
Primary Measured Value	Flow Rate
Secondary Measured Value	Volume Flow (Pressure and Temperature are available)
Process Temperature	T1 Level: -20...100 deg cel
	T2 Level: -20...250 deg cel
	T3 Level: -20...350 deg cel
Pressure
EN 1092-1	DN200...DN300: PN10
	DN100...DN200: PN16
	DN15...DN80: PN25
	Other pressure is on request
ASME B16.5	1/2"...8": 150#
ASME B16.5	Other pressure is on request
JIS	1/2"...8": 10K
JIS	Other pressure is on request
Accuracy	For liquid: 1.0% of rate
Accuracy	For gas/ steam: 1.5% of rate
Body Material	SS304
Body Material	SS316
Converter material	Standard: Polyurethane coted die-cast aluminium
