Anern's latest exclusive designed touchscreen solar storage system with a rated power of 3KW and 5KW can view the system data more conveniently by the newly added interactive touchscreen design. Due to its double CPU intelligent control technology and MPPT controller plus convenient and practical 5VDC-USB output port and 12VDC output port, this solar-powered electric generator series can provide excellent performance.

As a high-end solar energy storage product representing future trends, Anern's high-quality solar-powered inverter generator is the best solar power supply choice for homes, small offices, and shops.
The Details of High-Performance Touch Screen Solar Power Generator (AN-MPSG-T)

Double CPU intelligent control technology, performance excellence.
MPPT solar controller greatly improves the charging efficiency by more than 20%.
The interactive touchscreen design can display the device parameters in real time and the running status is clear at a glance.
The interactive touchscreen design displays parameters in real-time. The running status of solar energy generators is clear at a glance.
Built-in 6000 cycles brand new lithium battery and have a 5 years service life.
In case of an outage, the UPS feature comes in handy. When MPSG-T Series detects a power failure, it automatically kicks into gear, which allows a computer or any of the most sensitive utilities that In case of an outage, the UPS feature comes in handy.
When MPSG-T Series detects a power failure, it automatically kicks into gear, which allows a computer or any of the most sensitive utilities that you can't afford to lose to keep running.
The working status of our solar battery backup generator would be shown by mobile phone APP through the wifi module.

                                                            Brand Name
                                                            Anern

                                                            Model

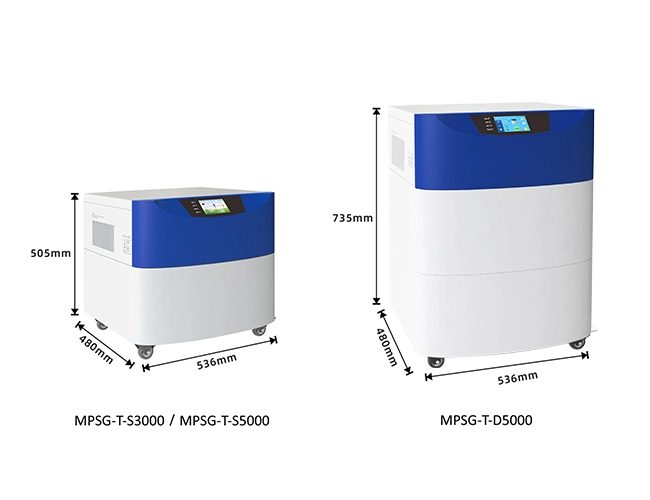

                                                            MPSG-T-S3000    MPSG-T-S5000     MPSG-T-D5000

                                                            Battery Voltage
                                                            24V                             48V                              48V

                                                            Inverter RATED POWER
                                                            3000W 5000W 5000W

                                                            Mobile output
                                                            TYPE C-PD60 /USB QC3.0 /USB-5VDC 2.4A/2 units 12VDC

                                                            Output Ports
                                                            2 units /MAX2A

                                                            Input Voltage Range
                                                            170-275VAC

                                                            Input Frequency
                                                            45-65

                                                            Output Voltage
                                                            110/220

                                                            Output Frequency
                                                            50/60

                                                            Output Wave
                                                            Pure Sine Wave

                                                            Speficifaon Of Built-in Lithium Battery
                                                            2600WH(Single baery box) 4500WH(Single baery box) 9000WH(Double baery box)

                                                            Communication
                                                            WIFI(optional)

                                                            Max. PV Power
                                                            1500W 1500W 3000W

                                                            Range Of Charging Voltage
                                                            30-150VDC 60-150VDC 60-150VDC

                                                            Rated Charge Current
                                                            60A(MPPT) 30A(MPPT) 60A(MPPT)

                                                            MPPT efficiency
                                                            ≥99%

                                                            Voltage For Floang Charge
                                                            24.9VDC 49.8VDC 49.8VDC

                                                            Low Voltage Recovery Voltage
                                                            23.4VDC 46.8VDC 46.8VDC

                                                            Low Voltage Protecton Voltage
                                                            18.6VDC 37.2VDC 37.2VDC

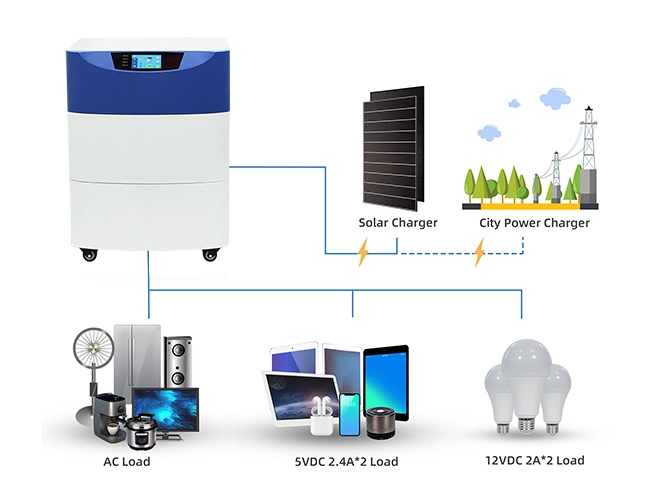

Designed as a flexible power station to meet various scenarios, the Anern MPSG-T Series has different usages:

Kitchen
Living room
Study
Backyard
Work Station

ADVANTAGE of High-Performance Touch Screen Solar Power Electric Generator

DOUBLE CPU

Excellent performance because of double CPU intelligent control technology.

TOUCH SCREEN

Touchscreen can view system data more conveniently.

WIFI SMART MONITORING

The system's working status would be shown by the mobile phone APP through the wifi module.

MPPT CONTROLLER

MPPT controller greatly improves the charging efficiency by more than 20%.

LITHIUM BATTERY

6000 cycles lithium battery and has a 5 years service life.

The Key Features of High-Performance Touch Screen Solar Power Electric Generator

With 3000W/5000W output, multiple devices in smart portable solar generators can be loaded simultaneously.
The main supply mode/energy-saving mode/battery mode between solar-powered electric generators can be set flexibly.
Convenient and practical 5VDC-USB output port and 12VDC output port.
Safe and reliable with intelligent exhaust fan control among solar battery backup generators.
Overcharge protection and over-discharge protection within solar battery generators for longer battery life.
Overall automatic protection and alarms in solar energy generators including AC output overload protection, short circuit protection, etc.
