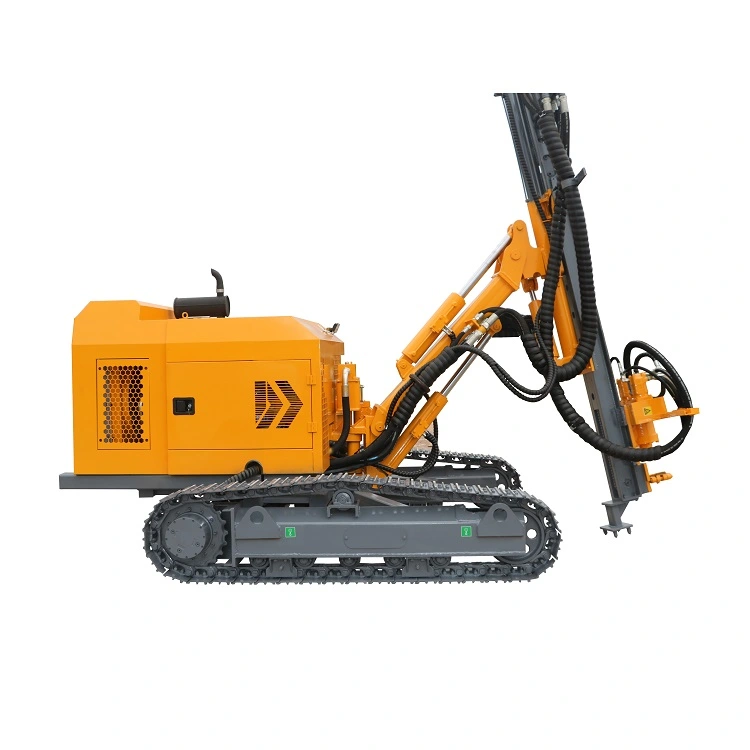

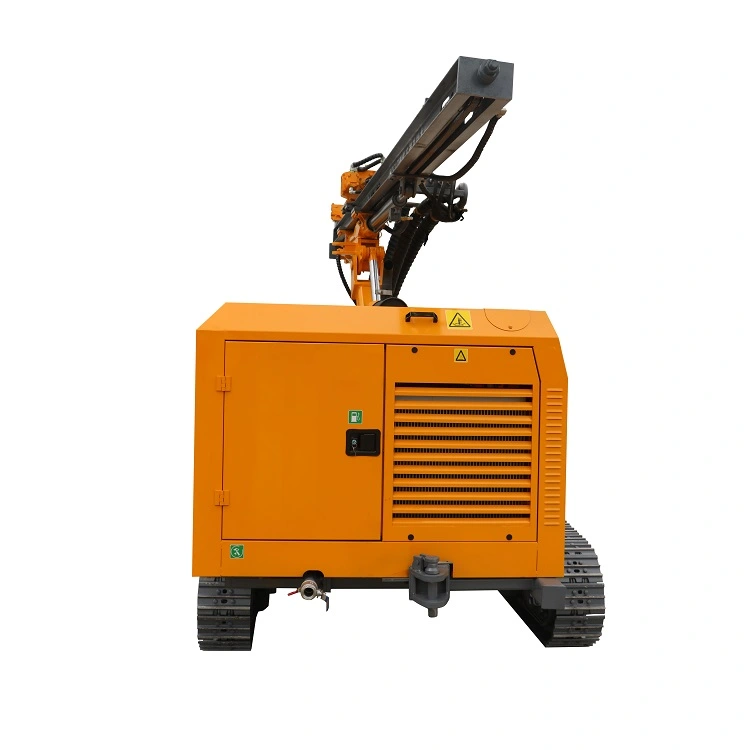

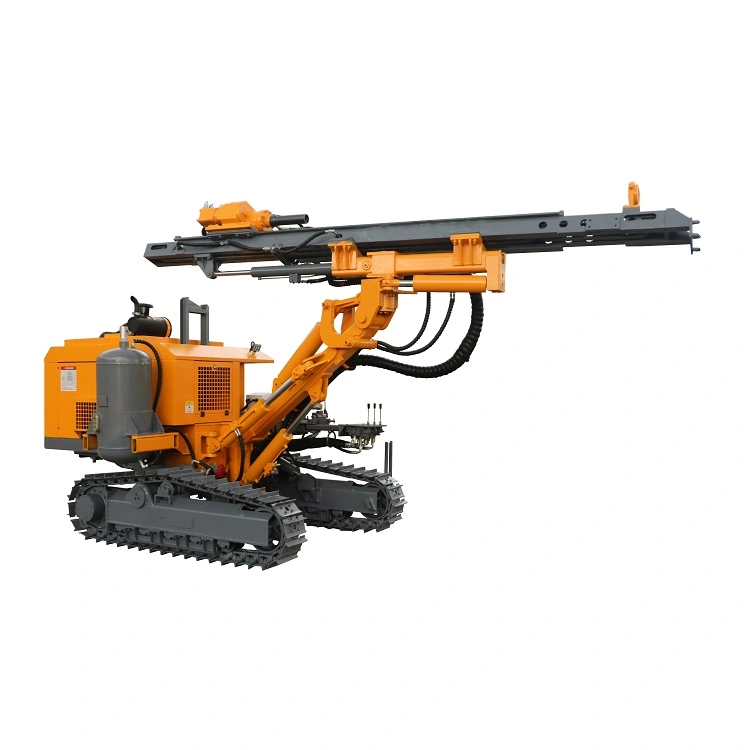

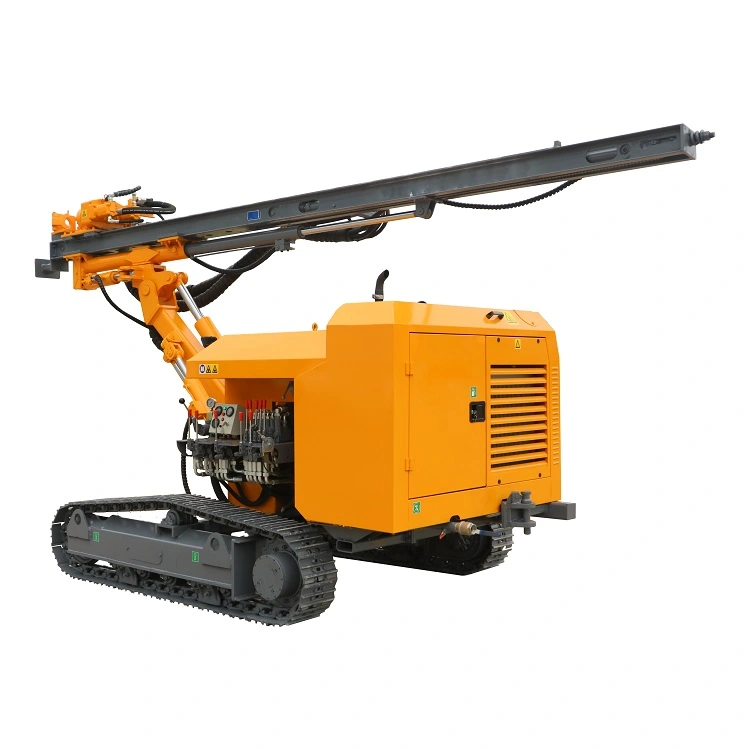

Integrated Down the Hole Drill Rig for Open Hole 90-105mm 176kw with Air Compressor

(0 reviews)

(640) Views

(0) Contacts

The integrated open-air DTH drill carriage is a drilling equipment that integrates the DTH drilling system and the screw air compression system. Can drill vertical, inclined, and horizontal holes, used for drilling blast holes in open-pit mines and stone works and pre-split holes.

Contact Company

Tianjin Jinjing Gas Compressor Manufacturing Co.,Ltd

Tianjin Binhai New Area, China

(2157) Views

(4) Contacts

You may do DTH drilling in practically any drill-ability category for rocks. It is a typical drilling tool used in construction, oil well creation, mineral extraction, and natural gas extraction.

Diesel or electric motors can be installed in DTH drilling rigs depending on the specific operating environment. The impactor, which is inserted into the borehole during the rock drilling process, can lessen the energy loss resulting from the drill rod's impact, thereby lessening the impact of the drilling depth on the borehole.

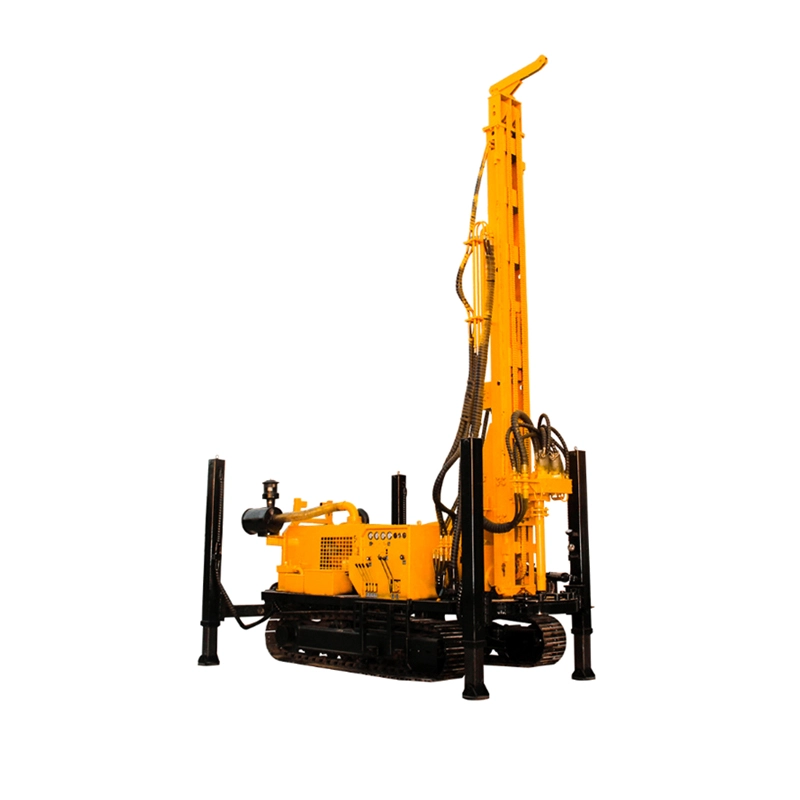

1. The hydraulic transmission of the drilling rig makes efficient use of the power. Because of this, there is little overall power loss and minimal drilling expense. Depth: 200, 300, 400, 500, and 600 m Truck crawler DTH water well drilling rig with a portable compressor.

2. The drill rig has an output torque of 13428-250 N.m. and more positive speed stages, with a speed range of 14-500 rpm.

3. The drilling rig features two reverse speeds, making addressing mishaps easier.

4. The air compressor drilling rig uses a mechanical power head with a 3400 mm stroke length, a long-stroke double-speed mechanism, and improved drilling efficiency to lower the risk of burning and plugging incidents.

5. The oil supply for the water well drilling rig is provided by two oil pumps. When drilling, a single pump is utilized, and when raising, a twin pump is utilized for confluence. There is little power loss and little auxiliary time.

6. The drilling rig machine is easy to maintain, repair, and maintain thanks to its sophisticated structure and sensible arrangement.

Hole Drill Rig Features

1. Two-stage compressor head, larger displacement, higher pressure, can provide continuous surging power.
2. High-strength and high-torque dual-motor rotary power head, with a wide range of apertures, and can easily deal with stuck drills.
3.280 litters super large horizontal diesel tank, saving the trouble of refuelling in the middle.
4. Using Cummins water-cooled supercharged engine, low fuel consumption. The engine room layout is reasonable and easy to maintain.
5. Adopting professional engineering four-wheel area, supporting body levelling system, easy to control various complex terrains.
6. Powerful dust removal filter system, large air volume, 12 sets of filter elements, meeting environmental protection requirements.
