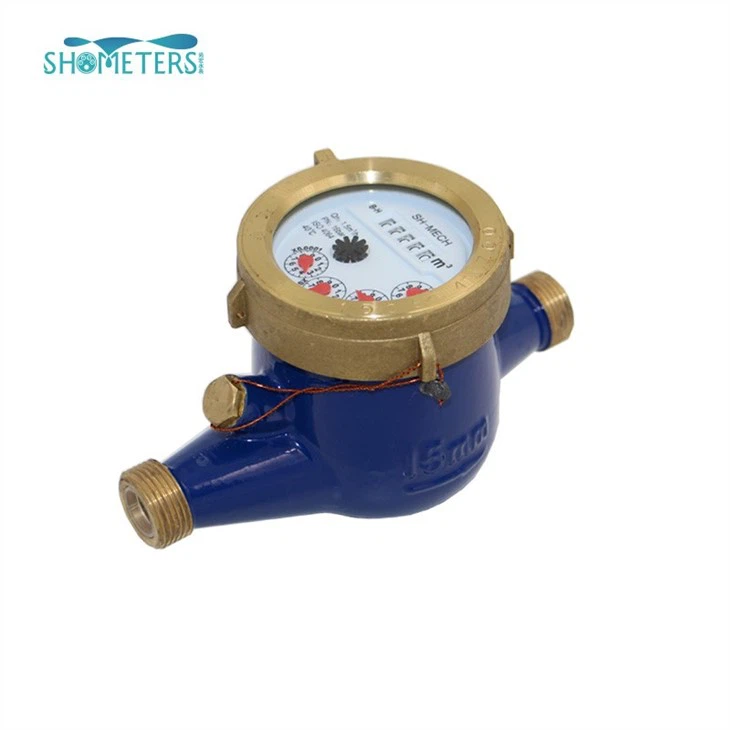

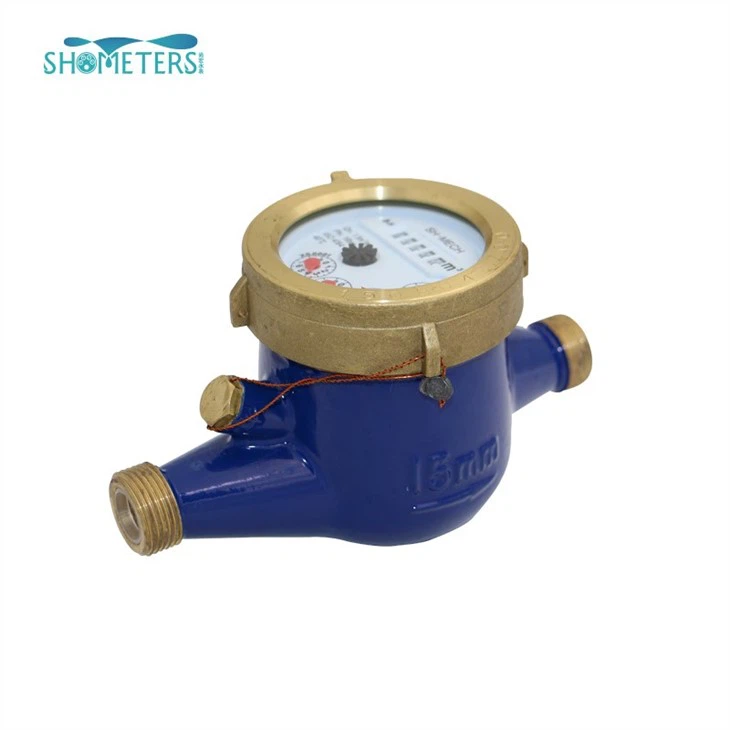

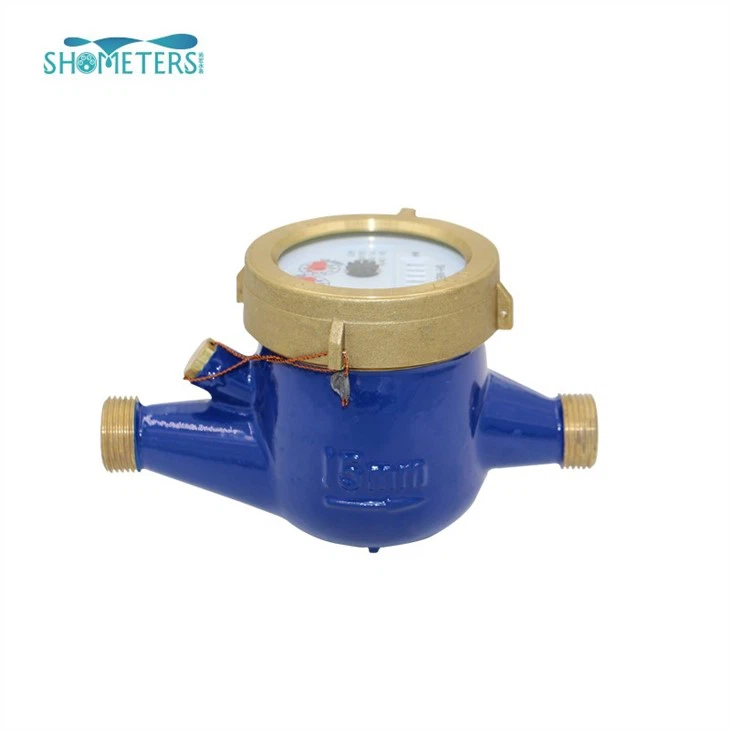

R160 Class C Multi-jet Vane Wheel Water Meter Brass Body

(0 reviews)

Get Price

(268) Views

(0) Contacts

Contact Company

HEBEI SHANGHONG METERS TECHNOLOGY CO.,LTD

Hebei, China

(2810) Views

(4) Contacts

Accessories

Each meter has one set of coupling options: 2pcs coupling, 2pcs coupling nuts, and 2pcs washers.

Installation requirements

The meter should be installed in a horizontal position with the direction of the flow as indicated by the arrow cast in the meter body, with the register face upwards.
The pipeline must be flushed before installation.
The meter should be constantly full of water during operation.

Maximum Permissible Error In the lower zone from Qmin inclusive up to but excluding Qt is ±5%.
In the upper zone from Qt inclusive up to and including Qs, is cold water meter ±2%.

Water temperature ≤50ºC for cold water meter

Water pressure ≤1MPa or 1.6MPa optional(10bar or 16bar option)

Applications of Water Meter

Multi-jet Liquid Sealed Vane Wheel Water Meter is a liquid-sealed water meter for residential applications in sizes 15mm-50mm for cold meters.

Multi-jet Water Meter features:

Mechanical transmission movement equates to maximum reliability.
The chamber of the rollers is liquid-filled filled sealed to protect the inner parts from moisture and dust penetration.
Sealed wet dial register.
Internal strainer, inlet strainer.

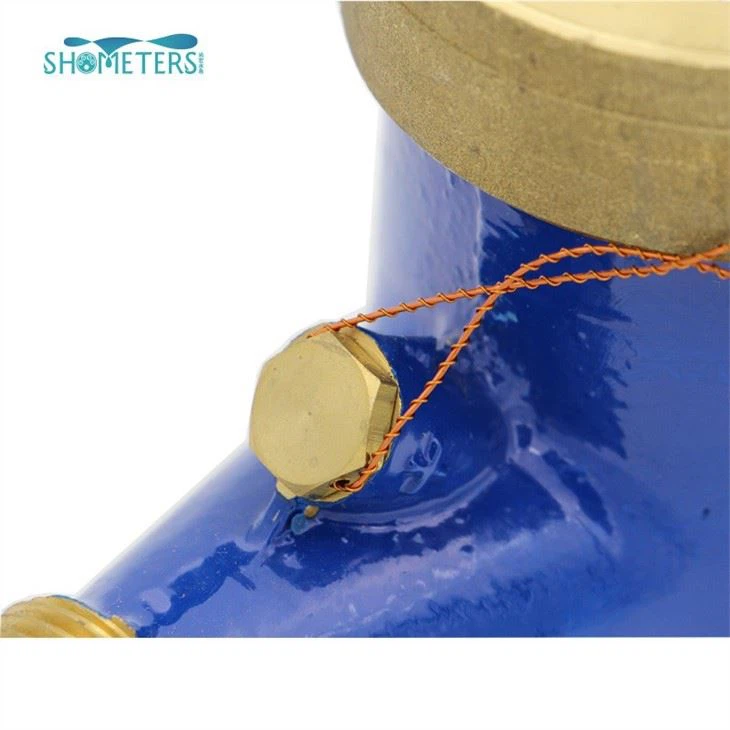

The external regulating device is particularly suited for lower quality water.
