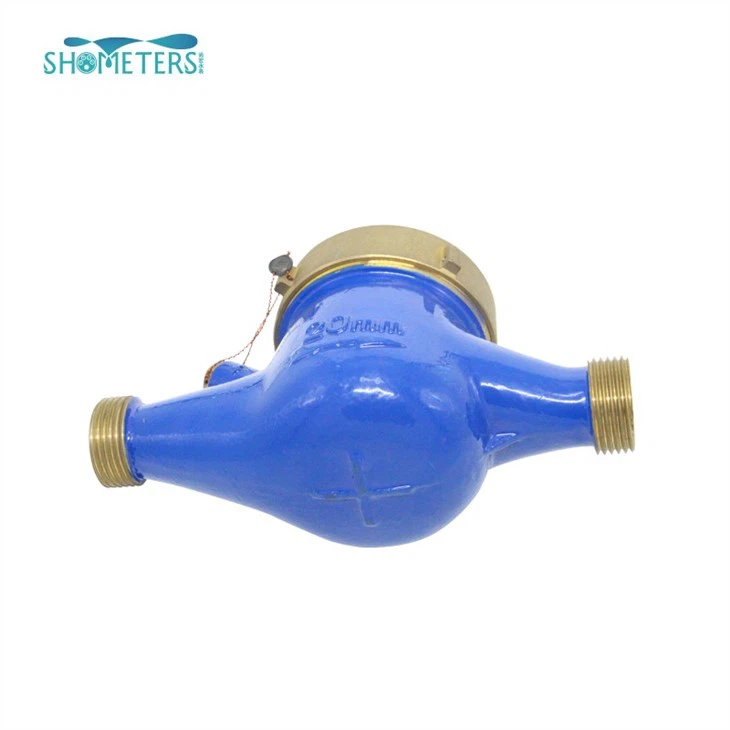

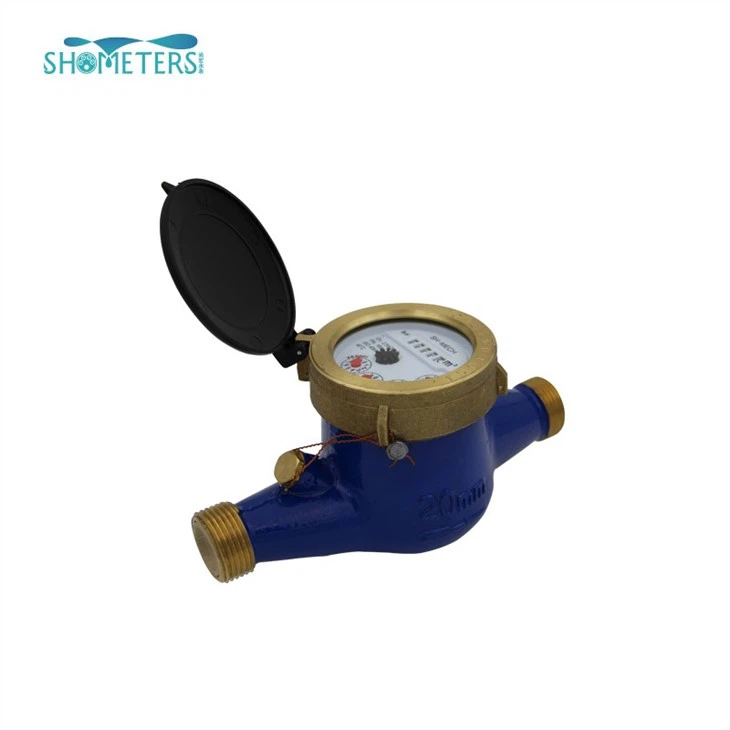

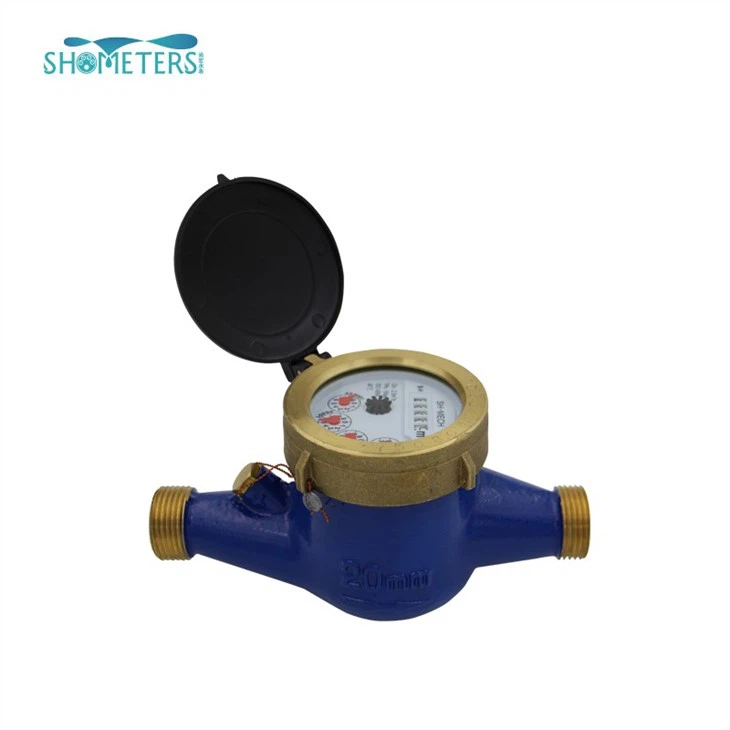

40mm Impulse Output Brass Dry Dial Mulitjet Water Meter

(0 reviews)

Get Price

(197) Views

(0) Contacts

10 - 99 pieces
$69.00
>= 100 pieces
$62.00

Contact Company

HEBEI SHANGHONG METERS TECHNOLOGY CO.,LTD

Hebei, China

(2826) Views

(4) Contacts

Maximum Permissible Error

In the lower zone from qmin inclusive up to but excluding qt is ±5%.
In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for the hot water meter.

Standards Compliance
Technical data conforms to the international standard ISO 4064.
Overall Dimension and Weight

DN (mm)	15	20	25	32	40	50	50
Size(inch)	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2"
Length(L)	165/190	190	260	260	300	300	280
Width(W)	98	98	103.5	103.5	125	125	160
Height(H)	116	117	124	124	162	162	187.5
Connecting Thread D	G3/4B	G1B	G11/4B	G11/2B	G2B	G21/2B	Flange end
Weight(kgs)	1.65	1.79	1.85	2.68	5.25	7.25

                                                            Accessories
                                                            2pcs coupling, 2pcs coupling nuts, and 2pcs washers.

                                                            Register sealed type
                                                            Dry type; Semi-dry type; Super-dry type

                                                            Thread end type
                                                            BSP / NPT

                                                            Accuracy
                                                            R=80 ; 100; 125; 160;class b;class c

                                                            Size
                                                            15~50mm.

                                                            Materials
                                                            Brass, Brass interface, Brass material

                                                            Brass working pressure
                                                            PN16(16bar)

                                                            Water temperature
                                                            0.1℃~50℃ for cold water meter.

                                                            Water pressure
                                                            ≤1.6Mpa (16 bar).

Dial Multijet Water Meter applications

Measuring the volume of cold (hot) water passing through the pipeline.
A water meter is used for homes, commercial, municipalities, and pipelines

Dial Multijet Water Meter features:

Magnetic Drive, Lower transmission resistance.
Magnetic shield, for external magnetic field protection.
A sealed dry register ensures long-term clear reading.
External regulating device.
With high accuracy
For horizontal use
Accessories include Strainer, Rotary piston, Connection Widget, and connector fitting

Optional Features

Cold water.
Non-return valve.
Reed switch option.
Several lengths and connections are available on request.
Provide pulse output/RS-485 Modbus/wired remote/pulse splitter/pulse read display
