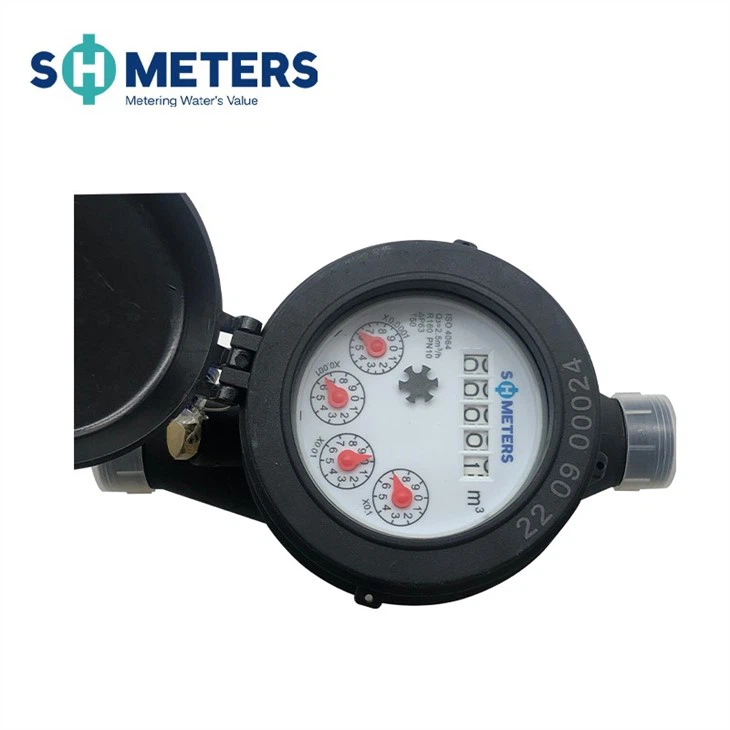

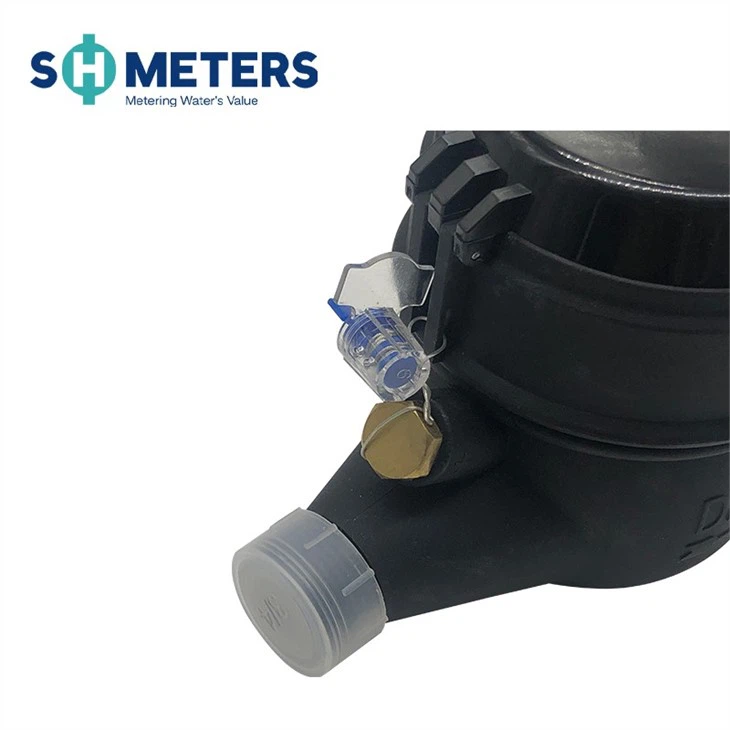

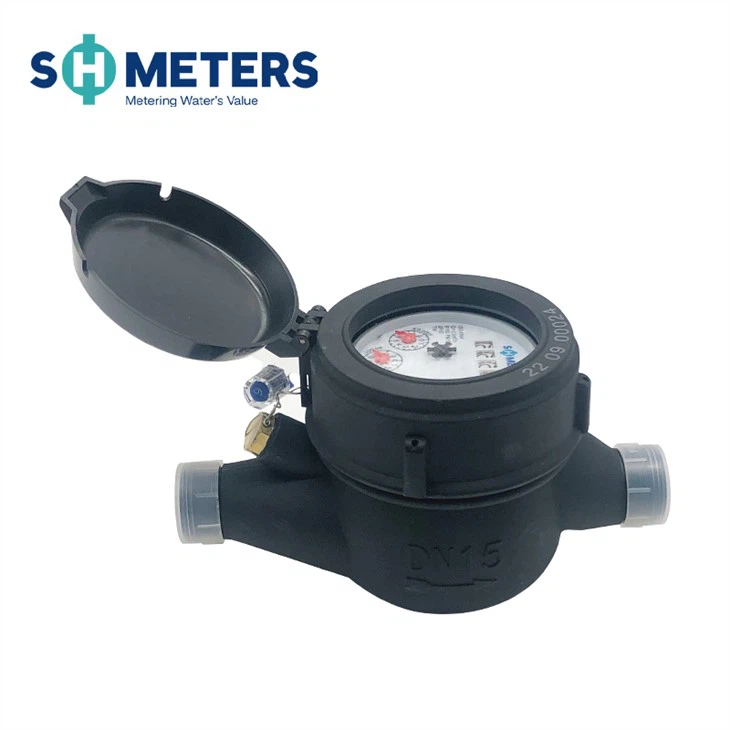

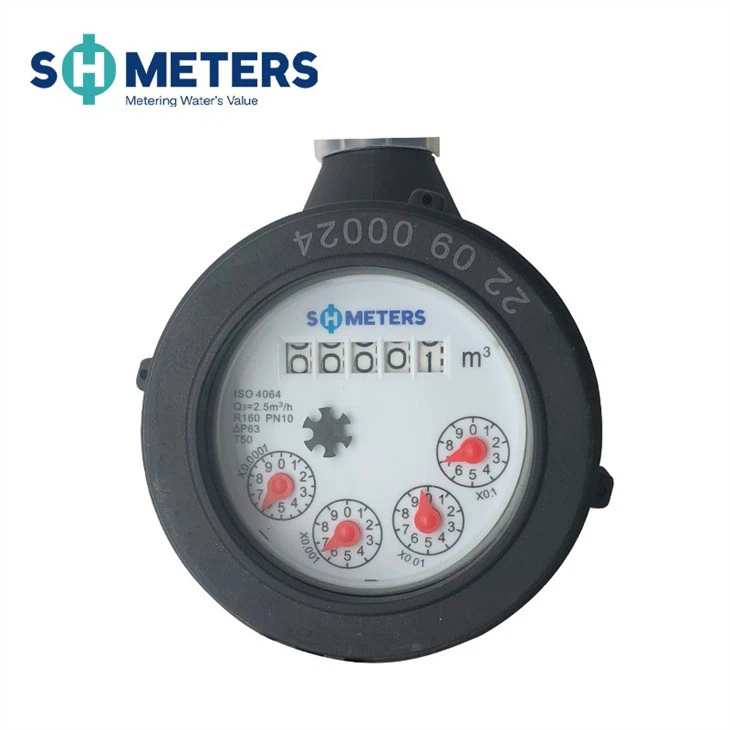

1/2inch~2inch Domestic Residential Dry Dial Water Meter Plastic Body Cold Water Meter

(0 reviews)

Get Price

(527) Views

(0) Contacts

10 - 99 pieces
$20.00
>= 100 pieces
$18.00

Contact Company

HEBEI SHANGHONG METERS TECHNOLOGY CO.,LTD

Hebei, China

(3175) Views

(5) Contacts

Maximum Permissible Error
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for the hot water meter.
Standards Compliance
Technical data conforms to international standard ISO 4064.
Overall Dimension and Weight

DN (mm)	15	20	25	32	40	50	50
Size(inch)	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2"
Length(L)	165/190	190	260	260	300	300	280
Width(W)	98	98	103.5	103.5	125	125	160
Height(H)	116	117	124	124	162	162	187.5
Connecting Thread D	G3/4B	G1B	G11/4B	G11/2B	G2B	G21/2B	Flange end
Weight(kgs)	1.65	1.79	1.85	2.68	5.25	7.25

                                                            Accuracy
                                                            R=80 ; 100; 125; 160;class b;class c.

                                                            Size
                                                            15~50mm.

                                                            Thread end type
                                                            BSP / NPT.

                                                            Materials
                                                            Plastic

                                                            Accessories
                                                            2pcs coupling, 2pcs coupling nuts, and 2pcs washers.

                                                            Water temperature
                                                            0.1℃~50℃ for cold water meter.

                                                            Water pressure
                                                            ≤1.6Mpa (16 bar).

Plastic Body Cold Water Meter applications

Measuring the volume of cold (hot) water passing through the pipeline.
A water meter is used for homes, commercial, municipalities, and pipelines

Plastic Body Cold Water Meter characteristics

Magnetic Drive, Lower transmission resistance.
Magnetic shield, for external magnetic field protection.
A sealed, dry register ensures long-term clear reading.
External regulating device.
With high accuracy
For horizontal use
Accessories include Strainer, Rotary piston, Connection Widget, and connector fitting

Plastic Body Cold Water Meter Optional Features

Register sealed type: Dry type; Semi-dry type; Super-dry type.
Cold water.
Nonreturn valve.
Reed switch option.
Several lengths and connections are available on request.
Plastic Working pressure: PN10(10bar)
Provide pulse output/RS-485 Modbus/wired remote/pulse splitter/pulse read display
