SINO-ZY Series Assembled Pressure Marine Water Tank Barrel

(0 reviews)

Get Price

(1042) Views

(0) Contacts

Contact Company

Sinooutput Group Ltd

Shanghai, China

(3610) Views

(27) Contacts

Parameters

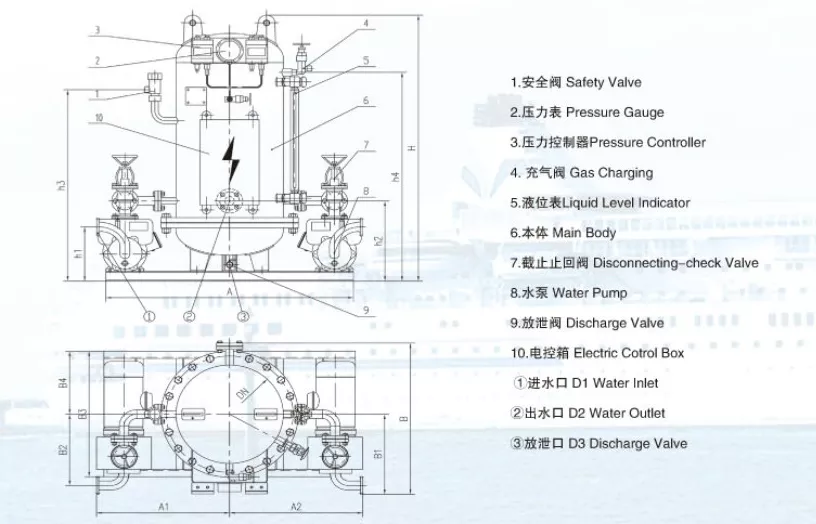

Type		SINO-ZY-
		0.12	0.2	0.3	0.5	1.0	1.5	2.0
Capacity (m³)		0.12	0.2	0.3	0.5	1.0	1.5	2.0
Working Pressure (MPa)		0.4
Design Pressure (MPa)		0.44
Safety Valve Open Pressure (MPa)		0.42
Pump	Flow	3				6.5		10
	Suction Head	40				40		40
	Power	2.2				3		4
Weight (kg)		280	320	360	420	450	550	620
DN		400	500	600	700	900	1000	1200
A		1080	1190	1316	1424	1595	1716	1898
A1		580	630	694	745	799	859	950
A2
B		731	781	921	1061	1248	1363	1540
B1		414
B2		368
B3		545	648	750	710	910	1012	1212
B4		272	325	375	355	455	506	606
h1		280	280	370	405	370	450	575
h2		415	415	462	506	495	605	686
h3		888	988	1045	1295	1490	1758	1682
h4		978	1098	1135	1385	1580	1935	1858
H		1282	1380	1455	1810	2060	2493	2470
D1		DN40
D2		DN40

Item No. 00708
