10” in-line set: filter housing, with pressure relief valve and transparent sump, mounting bracket with screws, wrench, cartridge, bacteriostatic filter centralizing ring, instruction, color box. Available with brass inserts: 1/2", 3/4", or 1" BSP. The design in combination with two O-rings (one inside the filter head and the second on the edge of the filter sump), ensures maximum leakproof performance.
FHPR12-B1-AQ - 1/2"
FHPR34-B1-AQ - 3/4"
FHPR1-B1-AQ - 1"

AQUAFILTER FHPR1-B1-AQ

H10B Series – WRAS Approved

Two Part 10" Water Filter Housing With Double O-rings

1" 3/4" 1/2" BSP Brass Inlet – Outlet

Aquafilter Sediment Filters

Antibacterial Filter Cartridge Centralizing Ring – BACINIX ™

*** NEW IMPROVED VERSION **

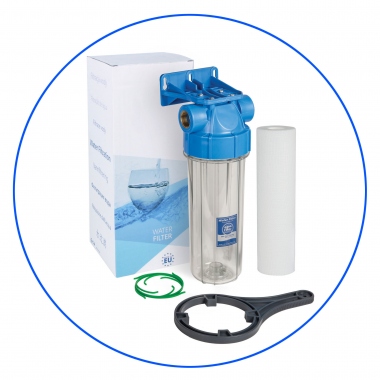

Kit Contains:

Two-Part Water Filter Housing (with pressure relief valve and transparent sump)

Plastic Mounting Bracket & Screws

Filter Housing Wrench

Antibacterial Filter Cartridges Centralizing Ring – BACINIX ™ Technology

Polypropylene Sediment (Melt-Blown) Filters

(Genuine Aquafilter FPCS5 - 5 micron)

General Description:

H10B series housings are all dedicated to cold water for domestic and commercial applications. H10B series housings are compatible with a broad range ofM2 ½” x 10” type cartridges widely available on the market.
FHPRxx-B1-AQ series housings consist of a transparent sump and head with brass inlet/outlet inserts and two O-rings (one placed around the sump thread and the other inside the filter head). A transparent sump allows for the evaluation of cartridge contamination.
Heads are equipped with a pressure relief valve (providing the ability to release air pressure during the cartridge replacement procedure).
Utilization of two O-rings ensures maximum leak-proof performance.
The H10B series housings can be mounted individually or connected in a series.

                                                            Clear Housing (sump)
                                                            polyethylene terephthalate PET ·

                                                            Blue Housing (sump)
                                                            polypropylene

                                                            Cap
                                                            polypropylene ·

                                                            Inserts
                                                            brass

                                                            Pressure relief valve
                                                            brass

                                                            O-ring
                                                            NBR

                                                            Number of orings
                                                            2

                                                            Thread
                                                            3/4" BSP

                                                            Operating Pressure
                                                            6 bar (90 psi)

                                                            Minimum working temperature
                                                            2ºC (35ºF)

                                                            Maximum working temperature
                                                            45°C (113.00°F)*

                                                            Dimensions without bracket (H x OD) 3/4”
                                                            355 x 120 x 140mm

                                                            Dimensions without bracket
                                                            315 x 120mm ·
