DETAILS

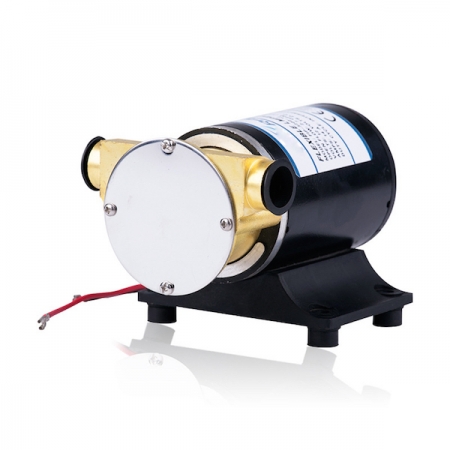

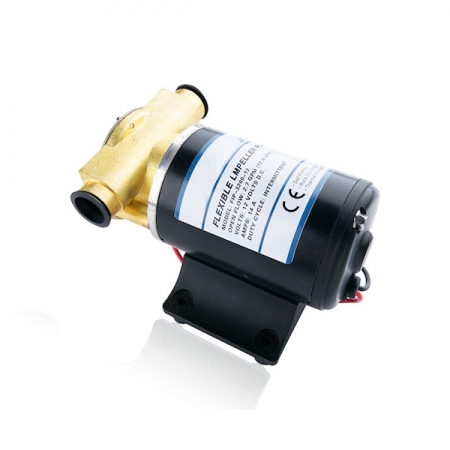

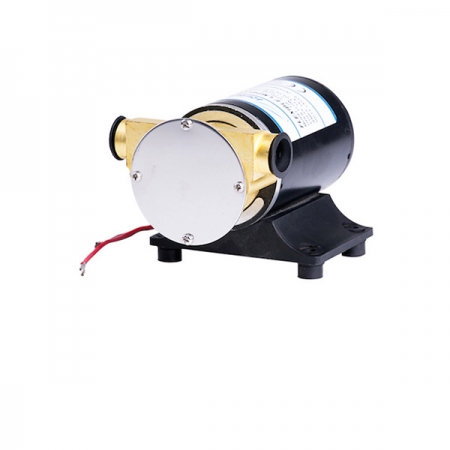

Shower debris presents no problem to this bronze-bodied, flexible impeller design
Simple design means fewer wearing parts-all user serviceable
Complies with USCG 183.410 and ISO 8846 MARINE (ignition Protection)
ISO 8849 MARINE (Bilge Pump Standard)
Compact size - easy to install, operate, and maintenance
Noise absorbing mounts
Thermal overload (Safety and reliability)

TECHNICAL DATA

Body Material: Bronze
Impeller: NBR Rubber
Seal: Lip Type
Ports:3/4" Female Thread(FNPT)
Volatege:12V/24V DC
Motor: Permanent Magnet Type Fully Enclosed Stainless Steel, High-quality seamless design
Self-Priming:3.0m vertical lift
Pressure: can generate pressures up to 2 bar(30psi)

                                                            Model
                                                            SF-32-12

                                                            Votage
                                                            12V DC

                                                            Amps
                                                            8.0A

                                                            Flow Rate
                                                            30LPM

                                                            Max Lift
                                                            3M

                                                            Max Draw
                                                            10.0A

                                                            Ports
                                                            3/4" Female Thread(FNPT)

                                                            Self-Priming
                                                            3.0M vertical lift

                                                            Impeller
                                                            NBR Rubber

                                                            Packing Size
                                                            215mm*135mm*110mm

                                                            Net Weight
                                                            2.38KG

                                                            Gross Weight
                                                            2.58KG

Used in marine to drain water on deck and wash deck
Should be installed in a dry and ventilated position
Must not run dry, its better to work with a bilge control panel to avoid running dry

Good flow rate, 8.5 GPM (32 lpm) at 10ft (3m) total head
Self-priming up to 4ft (1.2m) allows
Pump Body: Brass (Treated against corrosion)
High-Grade Stainless Steel Motor Shaft
Mounting above wet bilges
Easy installation
Bronze body and flexible impeller
High flow and excellent suction
Bilge debris presents no problem to this bronze-bodied, flexible impeller design
