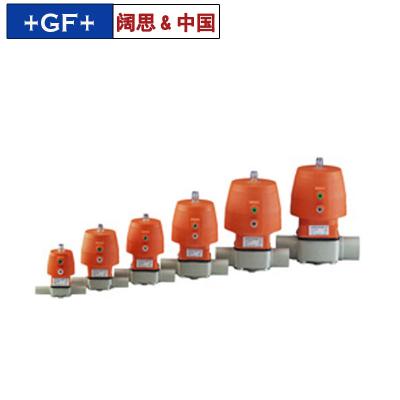

[GF Pneumatic Diaphragm Valve] DIASTAR 025 Type Pneumatic Diaphragm Valve

(0 reviews)

Get Price

(730) Views

(0) Contacts

Contact Company

Shanghai Kuosi Electronic Co., Ltd.

Shanghai, China

(3888) Views

(26) Contacts

This series has a relatively high closing force and is therefore used in applications where control of high-pressure lines (up to 10 bar at both ends) is required.

The DISASTER 025 with the integrated accessory interface is also a good choice if simple system integration is important.

Available operating modes: FC, FO, and DA.

Advantages of DISASTER 025 pneumatic diaphragm valve:

● Extensive selection of materials

● A wide range of application fields

● Corrosion resistance

● Security

● Safe maintenance and short downtime

● Simple integration of multiple accessories

● Smaller inventory and faster turnaround

DISASTER 025 types pneumatic diaphragm valve optional:

Normally closed (FC mode)

closes the valve by spring force in the non-operating state. The valve opens when the actuator is pressurized by the control medium (lower connection). When the control medium is discharged, the valve is closed by spring force.

Normally Open (FO Mode)

In the non-operating state, the valve is opened by spring force. The valve closes when the actuator is pressurized by the control medium (upper connection). When the control medium is discharged, the valve is opened by the spring force.

Double-acting (DA mode)

valves do not have a defined base position. Valves are opened and closed by applying control pressure to the corresponding ports. (The upper part is turned on and off, and the lower part is turned on and off)

                                                            Range
                                                            d20DN15 d63DN50

                                                            Seals
                                                            EPDM, PTFE, FPM, NBR, CSM

                                                            Connections
                                                            Union, Socket, Insert, Flange, IR Welding

                                                            Standards
                                                            ISO, ANSI/ASTM, BS, and JIS

                                                            Pressure Rating
                                                            10 bar at both ends

                                                            Control Media
                                                            Compressed Air (Oil Free) / Inert, Non-corrosive gases, up to 40°C

                                                            Control pressure
                                                            normally closed 6 bar, normally open and double acting 5 bar

                                                            Accessories
                                                            limit switch, handle, travel limiter, positioner, bus communication, self-adjusting limit switch, pilot Valve, valve manifold with bus communication, AS interface

                                                            Materials
                                                            PVC-U, PVC-C, ABS, PP-H, PROGEF Natural, SYGEF Standard, SYGEF Plus

                                                            Seals
                                                            EPDM, PTFE, FPM, NBR, CSM
