PVDF MBR Flat Sheet Membrane Module Equivalent with Kubota

(0 reviews)

Get Price

(713) Views

(0) Contacts

$33.00 - $41.00/ square meter |10 square meter/square meters(Min. order)

Contact Company

Nanjing Junxin Environmental Technology Co., Ltd

Jiangsu, China

(2804) Views

(8) Contacts

JX has conducted research and developed double flat film that is folded and double flat film that is layered as technology advances. We continue to use unit sheets that are 5mm thick. The flat sheet that is double-stacked can prevent distortion. And the effective area's thickness is only 5mm. Double flat film that has been folded provides a practical solution for awkward usage.
The MBR Membrane's Operation

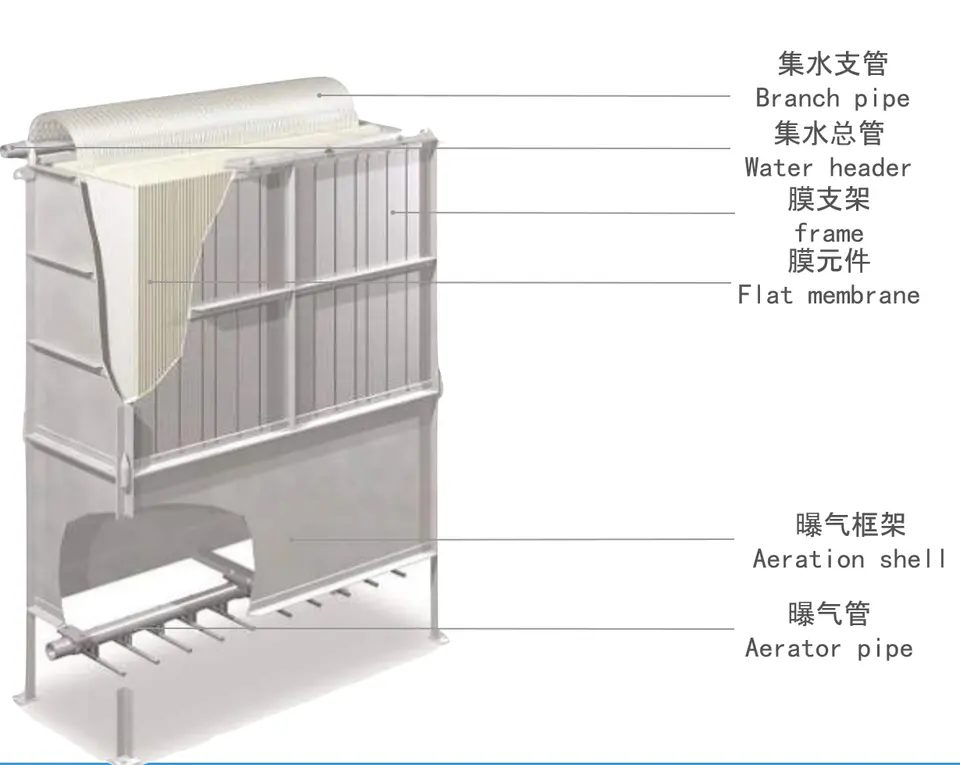

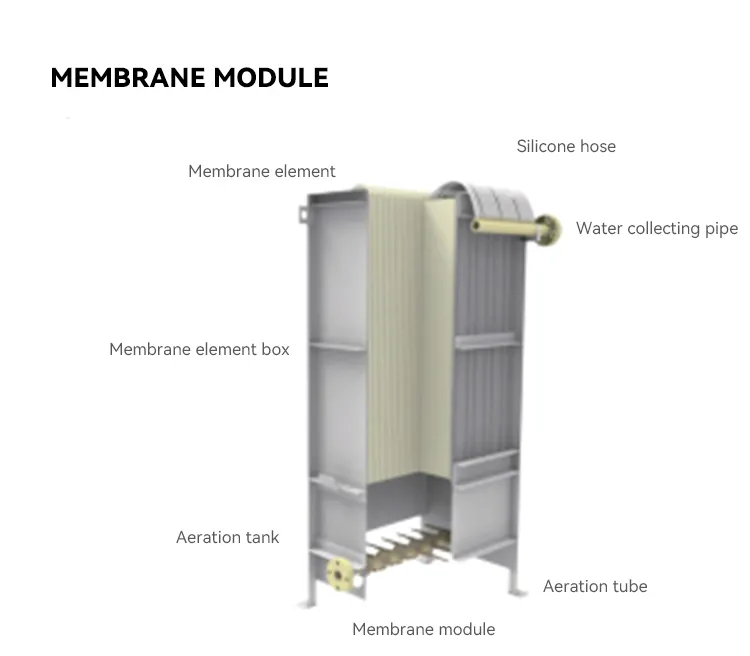

The flat sheet membrane
A support plate, interlining, diaphragm, and water intake make up an ultrafiltration plate membrane. Polyvinylidene fluoride serves as the component's main component, while a propylene cyanide-butadiene-styrene copolymer serves as the component's supporting plate. The typical membrane pore size is 0.1 um.

To control the water quality and quantity in the regulating pool, domestic sewage with a flat sheet membrane passes through the grille, removing the bigger suspended materials. minimize how water quantity and quality will affect the next step in the process. Sewage after adjusting pool homogeneous wastewater using the lift pump into the following biochemical treatment unit, followed by a lack of oxygen, before membrane aeration pool, pool on the organic pollutants and ammonia nitrogen and total nitrogen removal of pollutants like the biochemical treatment unit's bullishness of aerobic zone backflow sludge circumfluence to anoxic zone, mixed with anoxic zone into the water. discharge of effluent.

The use of MBR Membranes
Hydrophilic PTFE membranes are used as the membrane components in the PTFE plate membrane bioreactor that JX is offering. Low energy consumption, excellent chemical and pollutant resistance. The entire system is simple to maintain and install. It is simple to identify broken components and replace them because the membrane's components work together and independently of one another.
1. A new reclaimed water and sewage treatment facility
2. The original sewage treatment plant will be upgraded, upgraded, renovated, and expanded.
3. Industrial wastewater treatment and utilization of recovered water
4. Reusing reclaimed water and treating domestic sewage
5. Wastewater treatment in public facilities like hotels, hospitals, schools, and tourist attractions
6. Pretreatment of the creation of pure water

MBR Membrane Benefits
A number of benefits of membrane bioreactors over other wastewater treatments are commonly recognised, including
