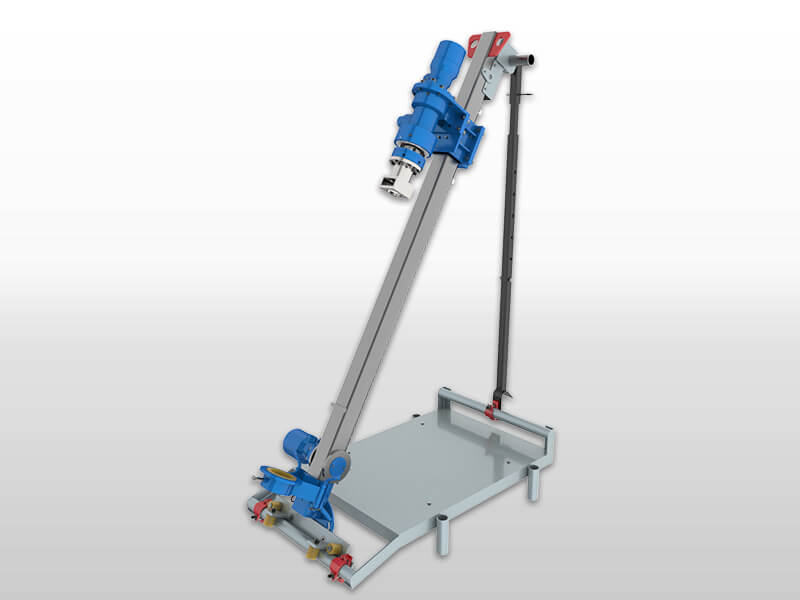

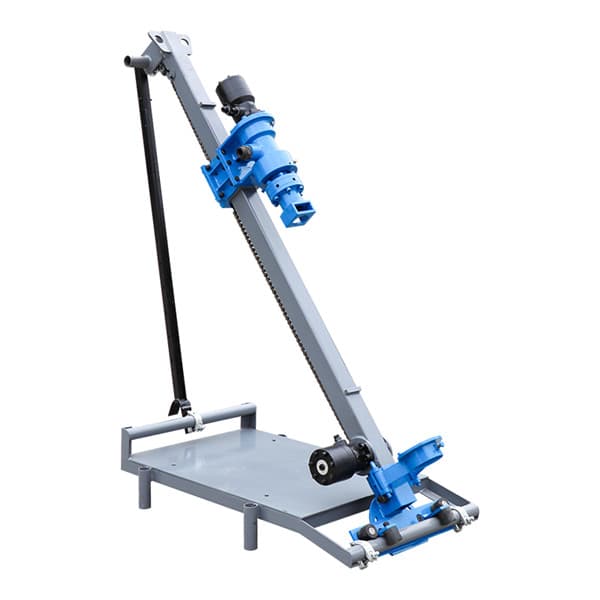

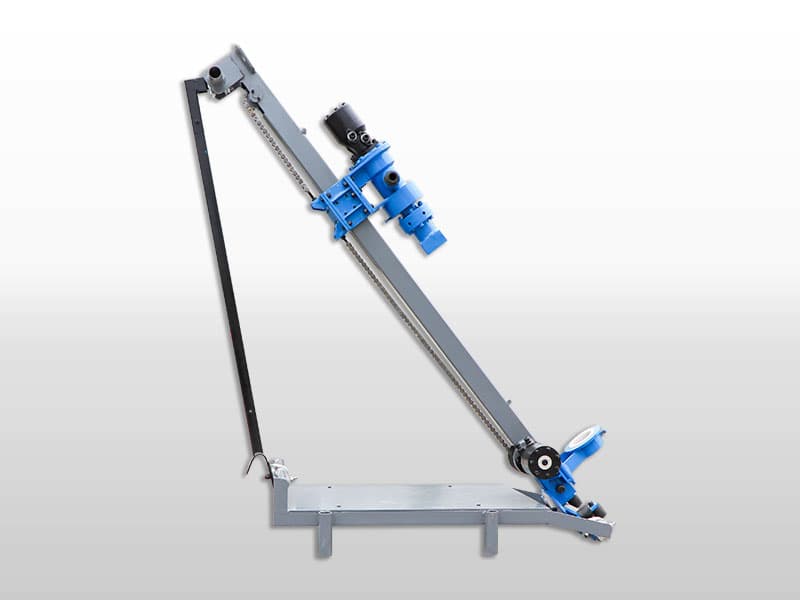

GPD100H The portable hydraulic drive DTH drilling machine is ideal for any handy drilling task. It is also a portable hydraulic chain feed drilling machine. In addition to core drilling, it can be used with drill and down-the-hole hammers. Compact in size, the hydraulic drive DTH drilling machine is easy to operate, fast, efficient, easy to disassemble, and incredibly portable.

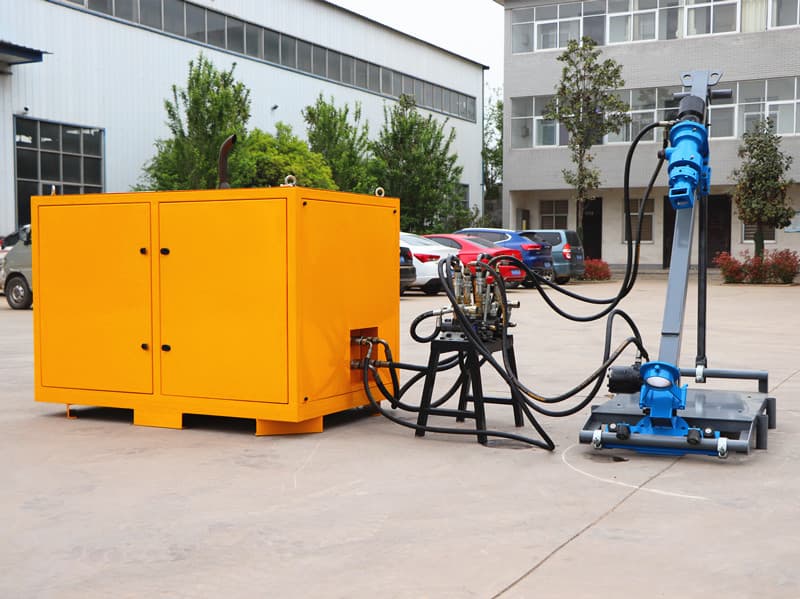

Diesel drive hydraulic station:
Every hydraulic pumping station is powered by a diesel motor. A cooling system, filtration system, pressure regulating system, temperature and pressure indication, and valve control are all features of our BHPP15/55X2-26D hydraulic station. Compact, user-friendly, and space-efficient is the diesel drive hydraulic station.

                                                            Model
                                                            GPD100H

                                                            Hole Diameter
                                                            80~120mm

                                                            Hole Depth
                                                            30m

                                                            Feed Force
                                                            12KN

                                                            Rotate Speed
                                                            90~120rpm

                                                            Torque
                                                            1000NM

                                                            Drilling Direction
                                                            Any Angle

                                                            Weight
                                                            86Kg (Only drill machine)

                                                            Dimension
                                                            2230x560x415mm

                                                            Model
                                                            GPD100H Portable hydraulic drive DTH drilling machine

                                                            Air Pressure
                                                            0.5~0.7Mpa

                                                            Air consumption
                                                            7~8m3/min

                                                            Single feeding distance
                                                            1m

                                                            Type
                                                            BHPP15/55X2-26D Hydraulic station

                                                            Weight
                                                            960kg

                                                            Output capacity
                                                            2x55L/min

                                                            Outlet pressure
                                                            15MPa

                                                            Diesel power
                                                            Weichai 2110 26KW

                                                            Dimensions
                                                            1760X1150X1300mm

Applications of Portable Hydraulic Drive DTH Drilling Machine
Mining, transportation, defense, water conservation, rock engineering, and particularly rough terrain all make extensive use of hydraulic portable chain feed drilling machines.
Specifically the below project:
1. Nailing
2. Blast Holes
3. Micropiles
4. Core Drilling
5. Exploratory Drilling
6. Diamond Drilling

Features of Portable Hydraulic Drive DTH Drilling Machine
The hydraulic drive DTH drilling machine GPD100H is made to be easily mounted on any kind of scaffolding and is appropriate for wall work.

Features of the available DTH drilling machine:
1. Easy to disassemble, flexible movement
2. Compact structure, easy operation
3. Drilling quickly and efficiently
4. Good economic benefits
