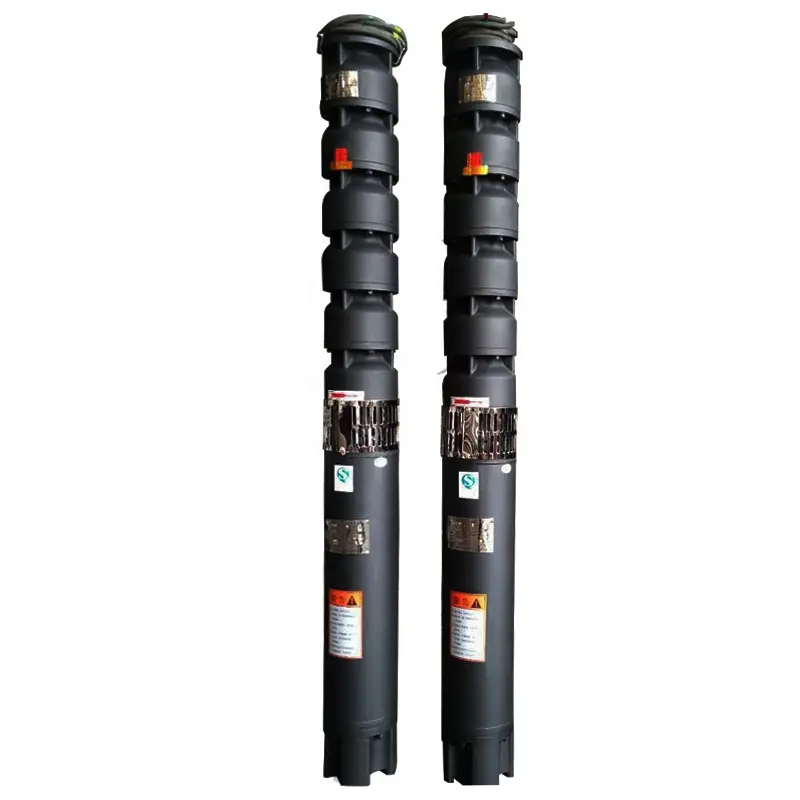

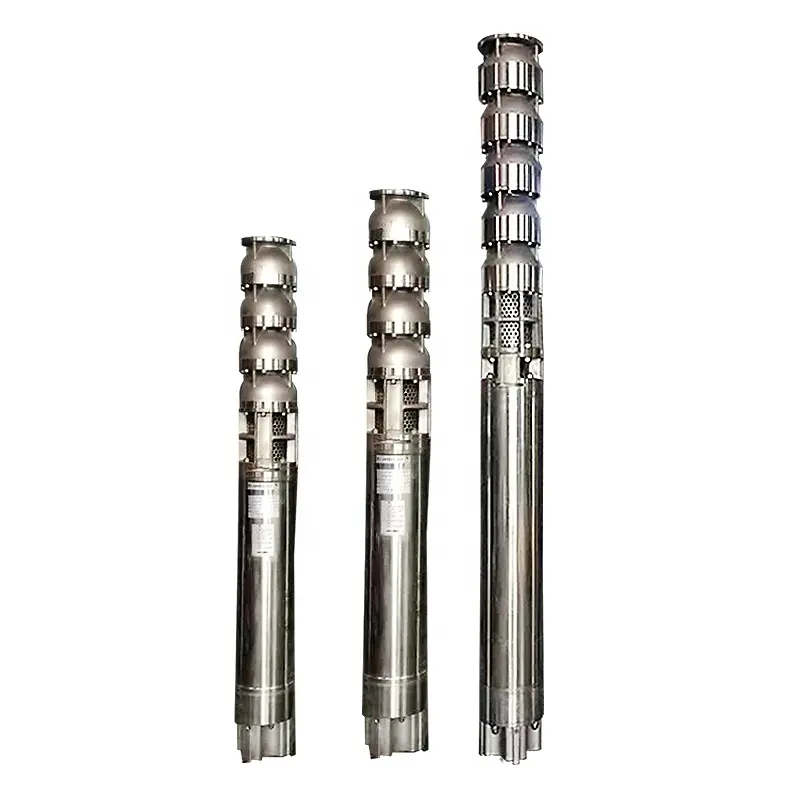

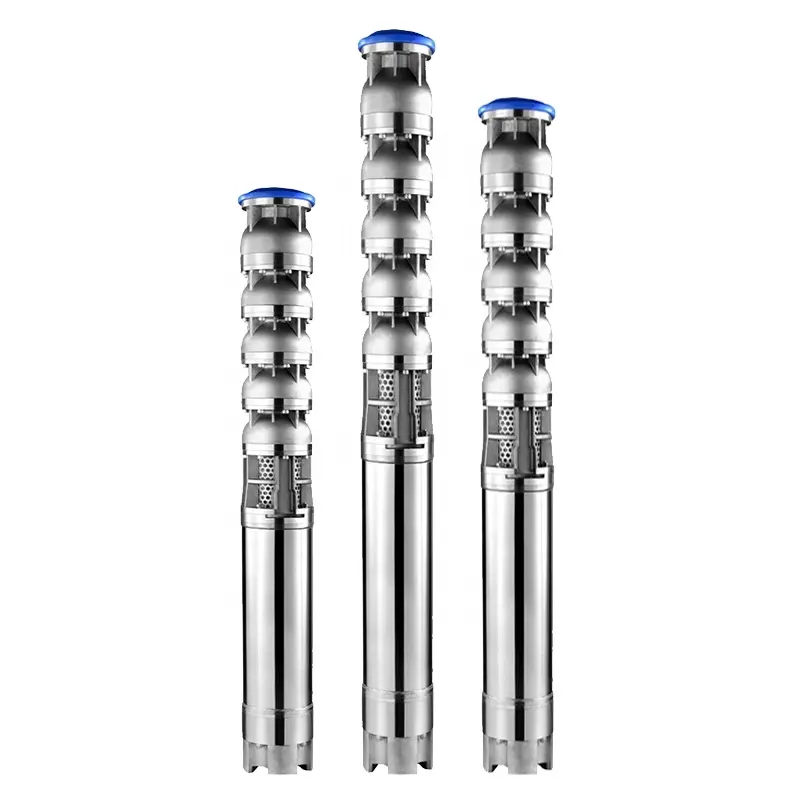

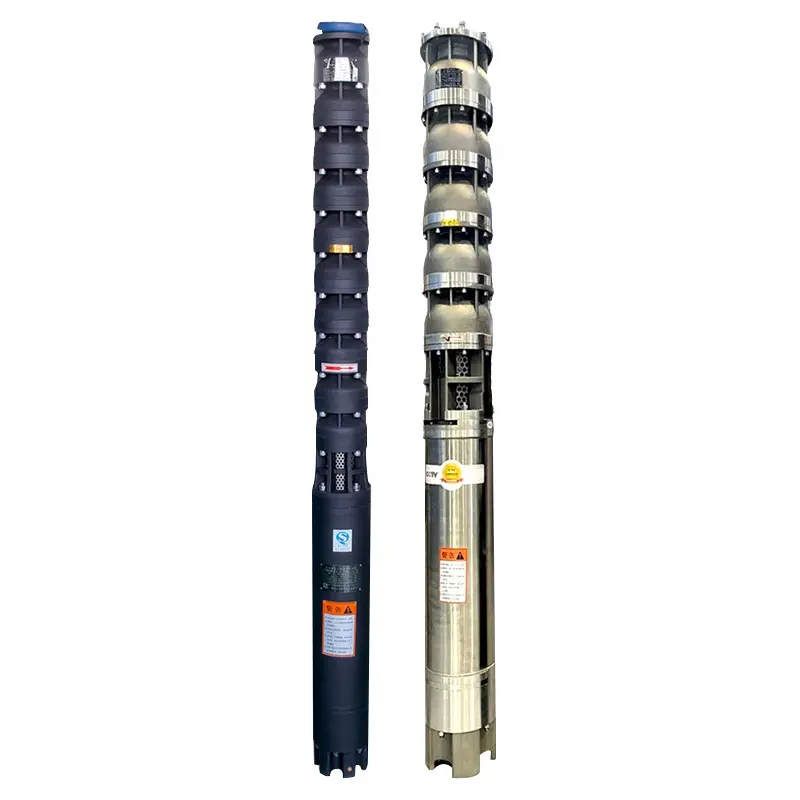

High Flow Stainless Steel Deep Well Extraction Water Pumps Automatic Centrifugal Submersible Water Pump

(0 reviews)

Get Price

(555) Views

(0) Contacts

1-4 pieces 5-9 pieces
‏1.200.00US$ 1,000,00 US$
>=10 pieces
‏900,00 US$

Contact Company

Hebei Antai Water Pump Manufacturing Co., Ltd.

Hebei, China

(2042) Views

(2) Contacts

Description
Product Reviews

The multistage submersible pump is a centrifugal or mixed flow type; the lubricated water bearing is used; the solid coupling is used to connect with the motor. The impeller of the pump is driven by the motor to generate centrifugal force, which increases the liquid power and realizes the water lifting through the function of turning the pump casing. The check valve body is set at the upper end of the water pump to prevent the working parts from being damaged by the backflow of water in the lifting pipe when the electric pump is closed. There is a drain hole on the valve, which can slowly drain the water in the pipeline to prevent the pipeline from freezing and cracking in winter. (Note: The low-head submersible pump does not have a check valve body)
The motor of deep well submersible pump is a closed wet water-filled structure. The stator winding insulation of the motor, multi-layer structure of the nylon sheath of the electromagnetic wire. The guide bearing and thrust bearing are made of water-lubricated material. The motor is filled with clean water to cool the motor and lubricate the bearing. A pressure regulating membrane is installed at the bottom of the motor to adjust the expansion and contraction pressure difference of the water in the body caused by the high temperature of the motor. The upper shaft of the motor is equipped with a sand control mechanism, which is used to prevent the mud and sand in the water from entering the body of the deep well submersible pump.
Pipeline part: It is used to connect the multistage pump, which is installed in the machine well to transfer water to the ground. It is mainly composed of short electric pump installation parts, elbow, splint and other parts. The short outlet pipe is the connection part between the water pipeline and the multistage pump. The elbow is installed at the wellhead to change the direction of water flow. The splint is used to lift and fix the outlet pipeline in the process of chemical pump installation.
