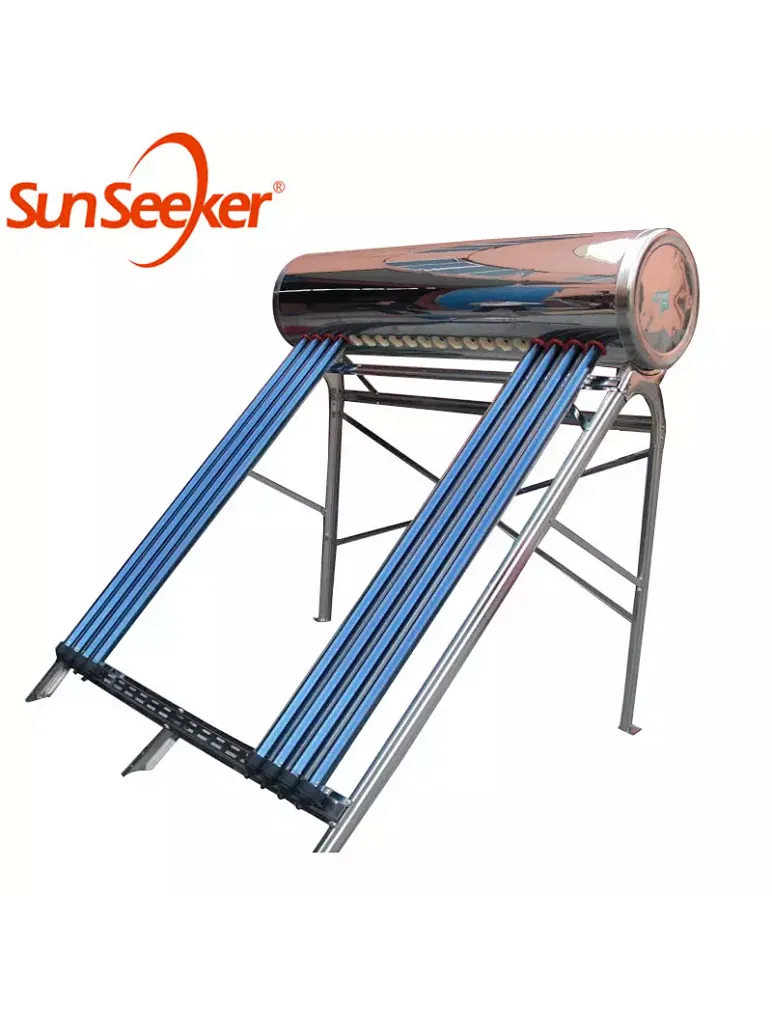

High Quality Vacuum Tube Heat Pipe Compressed Water Solar Energy

(0 reviews)

Get Price

(381) Views

(0) Contacts

US $152.00 - US $465.00 / Piece

Contact Company

Hangzhou Zhongyi Solar Technology Co., Ltd.

Hangzhou, China

(1607) Views

(3) Contacts

                                                            Model NO.
                                                            ZY-4B

                                                            Country of Origin
                                                            China

                                                            Diameter of inner tank
                                                            360mm

                                                            Diameter of outer tank
                                                            460mm

                                                            Distanace between holes
                                                            7.5cm

                                                            Inner tank material
                                                            sus304 1.2mm

                                                            Outer tank material
                                                            201 stainless steel 0.31mm

                                                            Insulation
                                                            polyurathane 50mm

                                                            Frame
                                                            201 stainless steel 1.2mm

                                                            Degree of frame
                                                            45degree

                                                            Tube
                                                            Copper heat pipe

                                                            Capacity
                                                            80L/100L/120L/150L/180L/200L/200L/250L/300L

                                                            THICKNESS OF GLASS TUBE
                                                            1.6MM

                                                            WELDING
                                                            ARGON ARC WELDING

                                                            VACUUM TUBE TIGHTNESS
                                                            P<=0.005 PA

                                                            AVERAGE HEAT LOSS COEFFICIENT
                                                            ULT=0.6~0.7W/(M2.C)

                                                            ABSORPTION
                                                            AS 0.93-0.96(AM1.5)

                                                            SUNNING PROPERTY PARAMETERS
                                                            Y=220~260M2.C/KW

                                                            EMISSION RATION
                                                            0.04-0.06(80C+-5C)

The compact pressure solar water heater's characteristics include:

Simple INSTALLATION
Easy Structure
ABOUT 30% MORE EFFICIENCY
The tank can withstand 0.6 MPA in comparison to a non-pressure solar heater.
In order for it to directly connect to tap water
